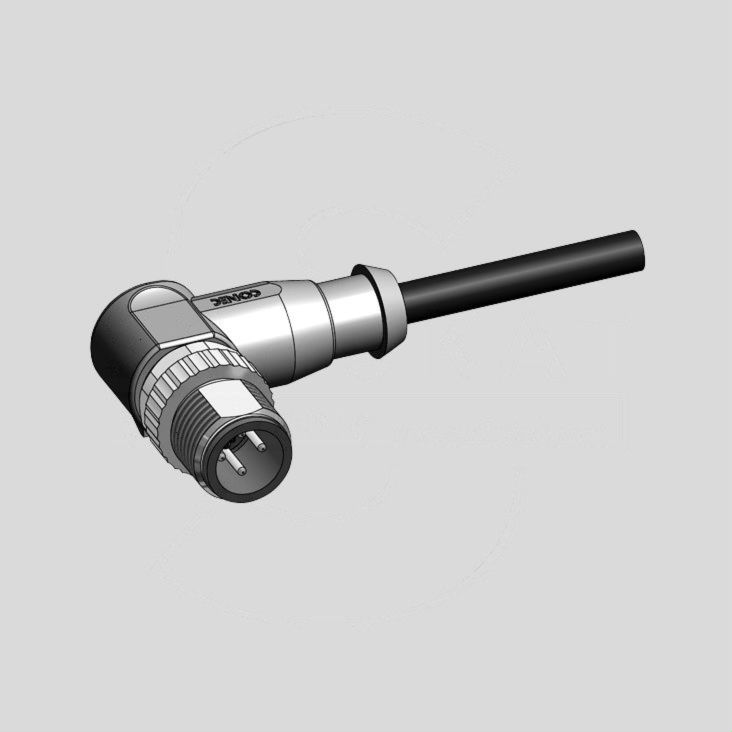

Male Cable Con. 5-Pole molded 2m 90°
Varenummer:
126-901
Varekode:
SAL-12-RSW5-2-K1A
Vægt:
90 g
Lagerstatus:
Ikke på lager
Gruppe: F4246
CONEC Connectors, Molded
with Wire
Series: SAL M12x1
Cable Mounting
| Features |
| • Cable connectors with screw locking • Fixing thread M12x1 / Ø 11mm • Cable: TPU, UL, halogen-free, black, Li9Y11Y 0,34mm2 • Cable length: 2m, 5m oder 10m |
 |
| Technical Specifications |
|
|||||||||||||||||||||||||||
| Connector Locking System: | Screw | Wire Cross Section, Max.: | 0,34mm2 | Degree of Protection: | IP671) | Temperature Range: | -30...+80°C | Rated Voltage | 4-pole: | 250V | 5-pole: | 60V | Rated Current (40°C): | 4A | Insulation Resistance, Max.: | ³100MW | Mating Cycles: | ³100 | Material of Contact: | CuZn | Contact Plating: | Ni, Au-galvanized | Material of Housing: | TPU Gray (UL94) | |||
| 1) in Mated Condition | |||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
| Note |
| • Suitable connectors for panel mounting, see the product group F4247 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.conec.com |
|
Stregkode:
126901
Intern reference:
126901
Varekode:
SAL-12-RSW5-2-K1A
