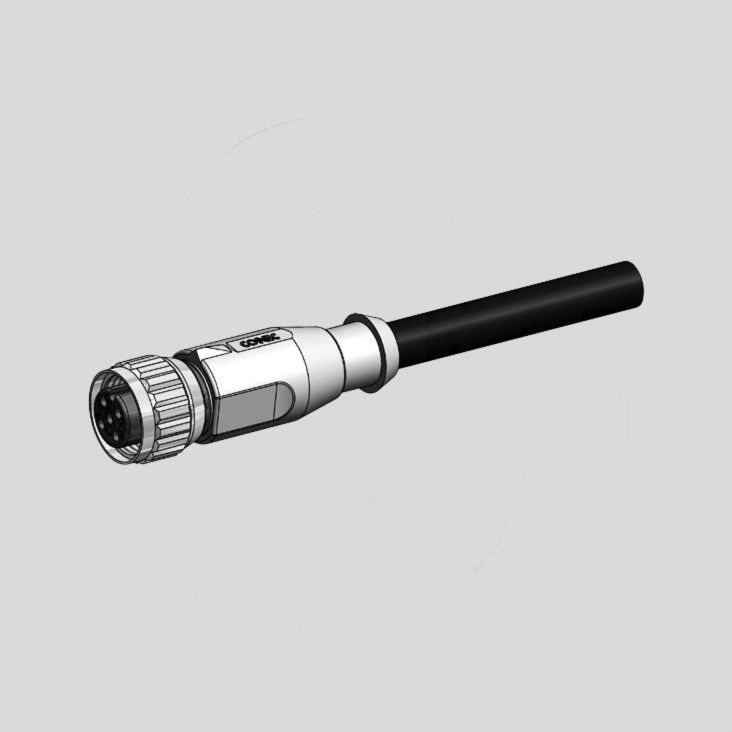

Female Cable Con. 4-Pole molded 2m axial
Varenummer:
126-887
Varekode:
SAL-12-RK4-2-K1
Vægt:
70 g
Lagerstatus:
Ikke på lager
| Features |
| • Cable connectors with screw locking • Fixing thread M12x1 / Ø 11mm • Cable: TPU, UL, halogen-free, black, Li9Y11Y 0,34mm2 • Cable length: 2m, 5m oder 10m |
 |
| Technical Specifications |
|
|
| Connector Locking System: | Screw |
| Wire Cross Section, Max.: | 0,34mm2 |
| Degree of Protection: | IP671) |
| Temperature Range: | -30...+80°C |
| Rated Voltage | |
| 4-pole: | 250V |
| 5-pole: | 60V |
| Rated Current (40°C): | 4A |
| Insulation Resistance, Min.: | 100MOhm |
| Mating Cycles, Min.: | 100 |
| Material | |
| Contacts: | CuZn |
| Contact Plating: | Ni, Au-galvanized |
| Housing: | TPU Gray (UL94) |
| 1) in Mated Condition | |
