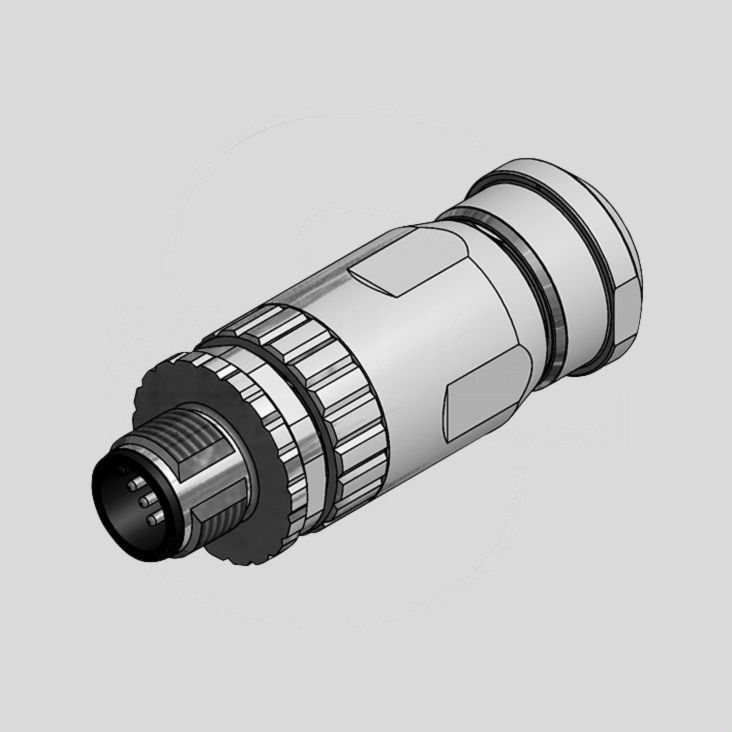

Male Cable Con. 4-Pole Screw Term shield
Varenummer:
126-886
Varekode:
SAL-12S-RSC4-S-150
Vægt:
40 g
Lagerstatus:
Ikke på lager
Gruppe: F4245
CONEC Panel Connector with Screw Locking
Series: SAL M12x1
Cable Mounting
| Features |
| • Cable connectors with screw locking • Fixing thread M12x1 |
 |
| Technical Specifications |
|
|||||||||||||||||||||||||||||||
| Connector Locking System: | Screw | Connection Type | Screw | Screw Termination, Max.: | 0,75mm2 | Cable Outlet, Max.: | 4...8mm | Degree of Protection: | IP671) | Temperature Range: | -30...+85°C | Rated Voltage | 4-pole: | 250V | 5-pole: | 60V | Rated Current (40°C): | 4A | Insulation Resistance, Max.: | ³100MW | Mating Cycles: | ³100 | Material of Contact: | CuZn | Contact Plating: | Ni, Au-galvanized | Material of Housing: | PA6 GF (UL94) | |||
| 1) in Mated Condition | |||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||
| Note |
| • Suitable connectors for panel mounting, see the product group F4247 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.conec.com |
|
Stregkode:
126886
Intern reference:
126886
Varekode:
SAL-12S-RSC4-S-150
