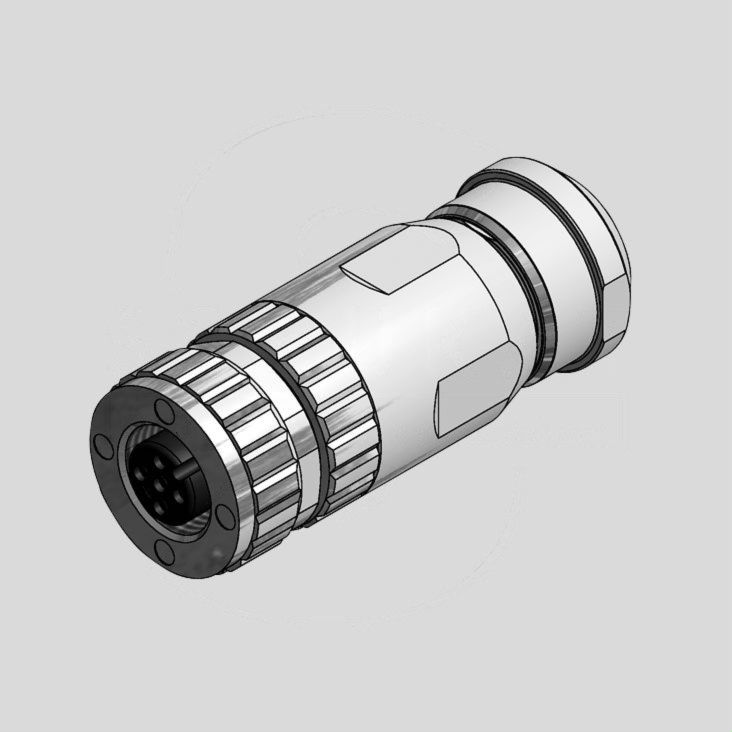

Female Cable Con.4-Pole ScrewTerm shield
Varenummer:
126-882
Varekode:
SAL-12S-RKC4-S-075
Vægt:
50 g
Lagerstatus:
Ikke på lager
Gruppe: F4245
CONEC Panel Connector with Screw Locking
Series: SAL M12x1
Cable Mounting
CONEC Panel Connector with Screw Locking
Series: SAL M12x1
Cable Mounting
| Features |
| • Cable connectors with screw locking • Fixing thread M12x1 |
 |
| Technical Specifications |
| |
| Connector Locking System: | Screw |
| Connection Type | Screw |
| Screw Termination, Max.: | 0,75mm2 |
| Cable Outlet, Max.: | 4...8mm |
| Degree of Protection: | IP671) |
| Temperature Range: | -30...+85°C |
| Rated Voltage | |
| 4-pole: | 250V |
| 5-pole: | 60V |
| Rated Current (40°C): | 4A |
| Insulation Resistance, Max.: | ³100MW |
| Mating Cycles: | ³100 |
| Material of Contact: | CuZn |
| Contact Plating: | Ni, Au-galvanized |
| Material of Housing: | PA6 GF (UL94) |
| 1) in Mated Condition | |
| |
| Note |
| • Suitable connectors for panel mounting, see the product group F4247 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.conec.com |
|
Stregkode:
126882
Intern reference:
126882
Varekode:
SAL-12S-RKC4-S-075
