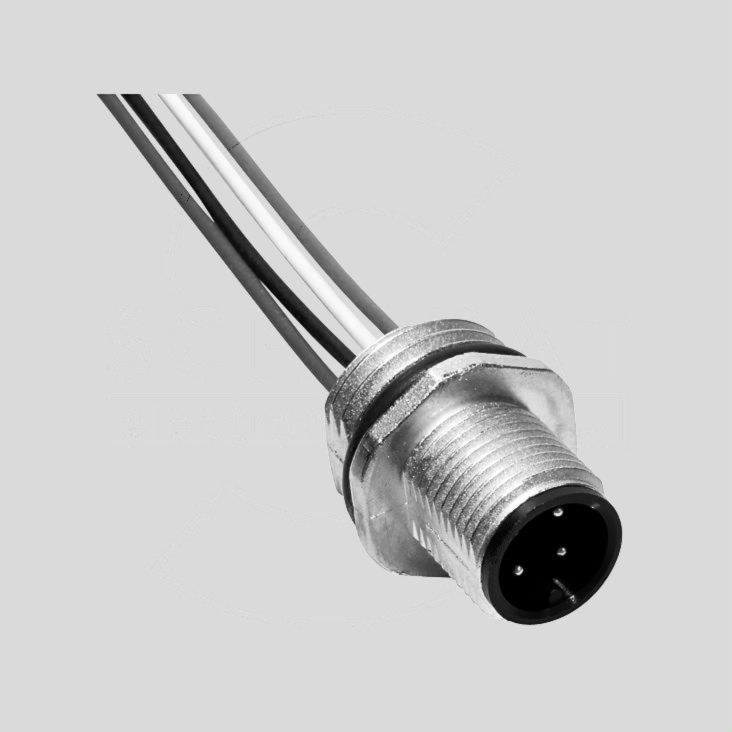

M12 Male Socket with Wires 4-Pole
Varenummer:
126-836
Varekode:
BIN09-3431-700-04
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe: F4238
BINDER Connectors with Screw Locking
Series: M12 A-Coded, 713
with Wires
Panel Mounting, IP68
| Features |
| • Cable connectors with screw locking • With wire 0,25mm2 • Thread locking M12x1 • Fixing thread M16x1,5 (PS leveres uden- se relaterede vare) • Shield connection with shield ring/iris type spring • UL versions • Degree of protection IP67 |
 |
| Technical Specifications |
|
|
| Connector Locking System: | Screw |
| Termination: | Solder |
| Wire Gauge, Max.: | 0,25mm2 |
| Degree of Protection: | IP68 |
| Mechanical Operating Life: | >100 Cycles |
| Temperature Range: | -25...+85°C |
| Rated Voltage | |
| BIN09-_-70004: | 250V |
| BIN09-_-70005: | 125V |
| Rated Current (40°C): | 4A |
| Contact Resistance, Max.: | 3mW |
| Material of Contact: | CuZn, Gold-plated |
| Material of Housing: | Zn (Diecasting), Nickel-plated |
|
|
| Approvals |
 |
