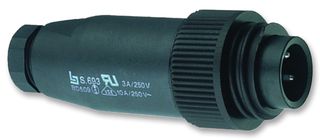

Serie 693 CIRCULAR PLUG, 3+PE WAY, PG9, CABLE
Varenummer:
126-815
Varekode:
BIN99-4221-00-04
Vægt:
0 g
Lagerstatus:
Ikke på lager
- CIRCULAR, PLUG, 3+PE WAY, PG9, CABLE
- Connector Type: Circular
- Series: 693
- Connector Body Material: PBT (Polybutylene Terephthalate)
- Gender: Plug
- Contact Gender: Pin
- Connector Mounting: Cable
- Insert Arrangement: (Not Available)
- No. of Contacts: 4
- Contact Termination: Screw
- Contact Material: Brass
- Contact Plating: Silver
- SVHC: No SVHC (20-Jun-2013)
- Cable Diameter Max: 9.5mm
- Cable Diameter Min: 6mm
- Current Rating: 16A
- Flammability Rating: UL94V-0
- IP / NEMA Rating: IP67
- No. of Mating Cycles: 500
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Termination Type: Screw
- Voltage Rating V AC: 400V
- Wire Area Size Max: 2.5mm²
- Wire Area Size Min: 0.5mm²
- Wire Size AWG Max: 14AWG
- Wire Size AWG Min: 20AWG
- Withstand Voltage: 6000V
- Working Voltage: 600V
Stregkode:
115-2247
Intern reference:
126815
Varekode:
BIN99-4221-00-04
