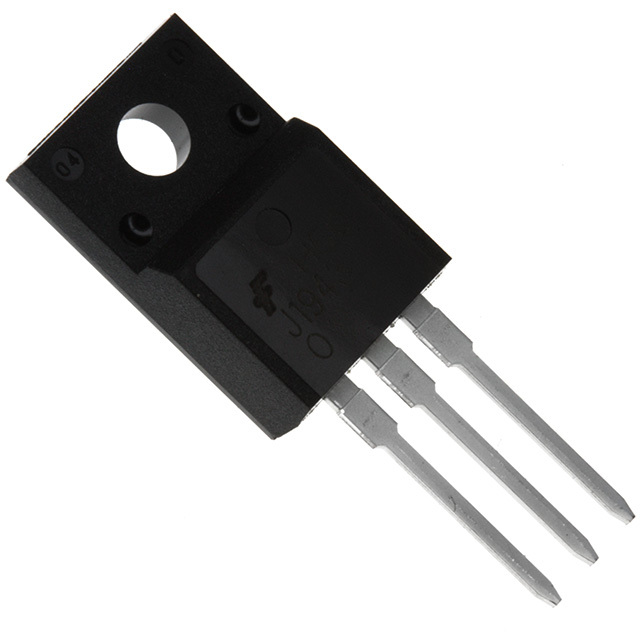

PNP 140V 7A 80W TO220
Type Designator: 2SB1372
Material of transistor: Si
Polarity: PNP
Maximum collector power dissipation (Pc), W: 80
Maximum collector-base voltage |Ucb|, V: 140
Maximum collector-emitter voltage |Uce|, V: 140
Maximum emitter-base voltage |Ueb|, V: 6
Maximum collector current |Ic max|, A: 7
Maximum junction temperature (Tj), °C: 175
Transition frequency (ft), MHz:
Collector capacitance (Cc), pF:
Forward current transfer ratio (hFE), min: 120
Noise Figure, dB: -
Package of 2SB1372 transistor: TO220
