LED Pil-formet 5x2,5mm. Grøn

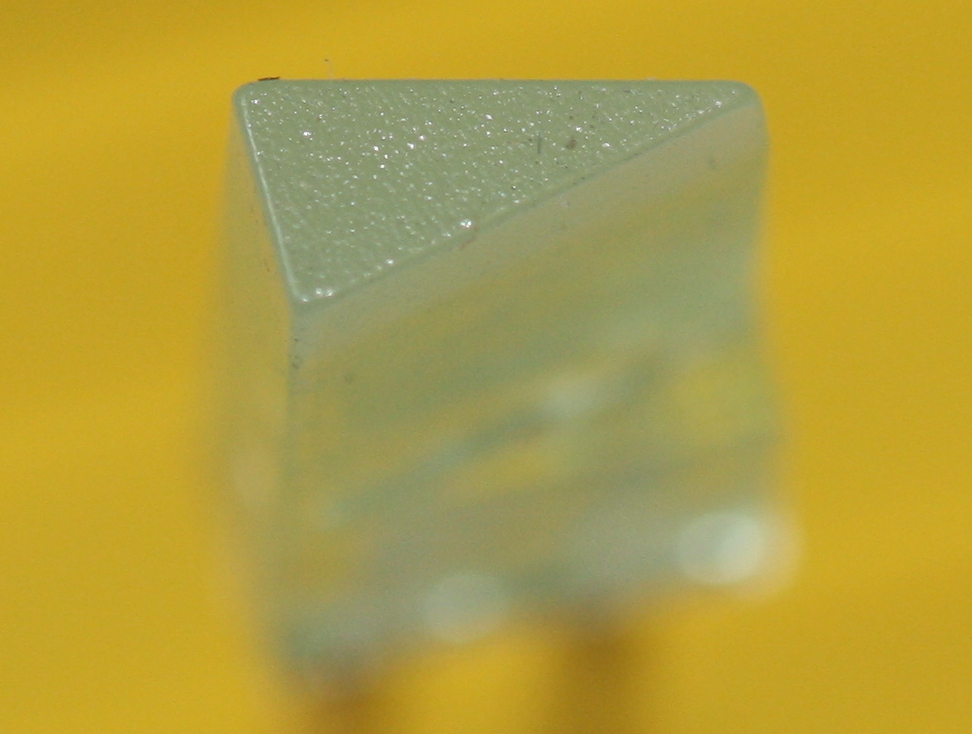

ARROW SHAPE

Part Number = V552P
Description = Triangular LED Lamp
Color = Green
Peak Wavelength (m) = 568n
Iv Min.(cd) Luminous Intensity = 3.0m
Half-Intensity Beam Angle(Deg) = 80
@I(F) (A) (Test Condition) = .02
V(F) Max.(V) Forward Voltage = 2.7
@I(F) (A) (Test Condition) = .02
I(F) Max. (A) Forward Current = .03
Overall Height (mm) = 9.5
Greater Surface Dimension (mm) = 5.0
Lesser Surface Dimension (mm) = 2.5

Heigjt housing: 9,5mm.

Manufactorer: TFK Telefunken
Lead Stand-off Clearance(mm) = 4.4
Package = LED-9c
