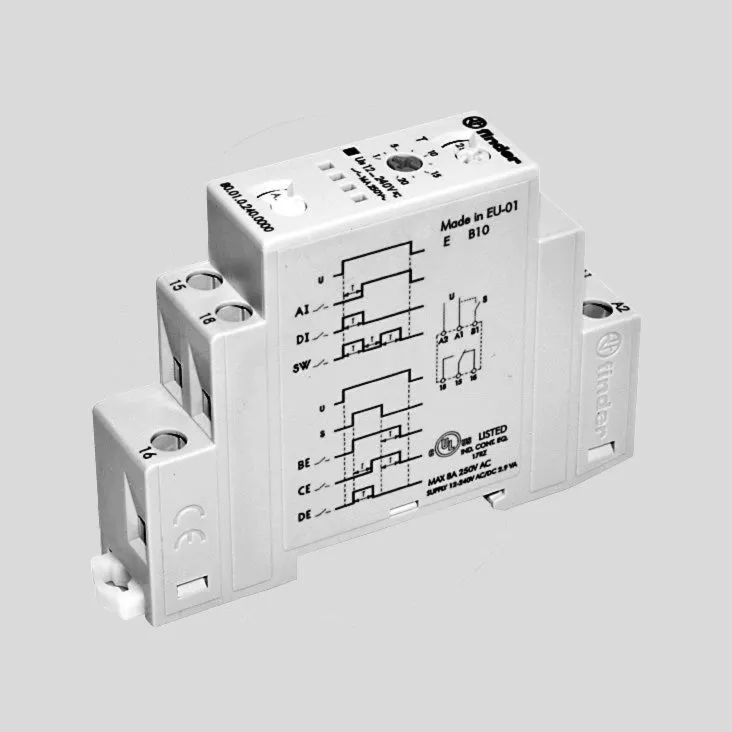

Multifunktion SPDT 16A 24-240V 80.41.0.240.0000
Varenummer:
126-139
Varekode:
FZR8041-240
Vægt:
60 g
Lagerstatus:
Ikke på lager
Features
| • Multifunction with 6 settings • Multivoltage of 12...240V AC/DC or 24...240V AC/DC • Voltage adjustment by pulse width modulation (PWM) • Six over-lapping adjustable time scales from 0,1s to 20h • Setting/operating element screwdriver adjustable • 35 mm rail (EN 60715) mount • 17.5mm wide • Category of protection IP20 |
 |
| Technical Specifications |
|
|
| Contact: | SPDT |
| Contact Material: | AgNi |
| Rated Current: | 16A |
| Max. Switching Current: | 30A |
| Max. Switching Voltage: | 400V AC |
| Max. Switching Power: | 4000VA |
| Recovery Time: | 100ms |
| Lifetime | |
| Electrical: | 50x103 Cycles |
| Operating Temperature: | -10...+50°C |
|
|
| Timer Functions |
|
|
| FZR8001-230: | On-delay |
| Interval | |
| Symmetrical flasher (starting pulse on) | |
| Off-delay with control signal | |
| On- and Off-delay with control signal | |
| Interval with control signal on | |
| FZR8011-240: | On-delay |
| FZR8021-240: | Interval |
| FZR8041-240: | Off-delay with control signal |
|
|
Stregkode:
8012823324678
Intern reference:
126139
Varekode:
FZR8041-240
