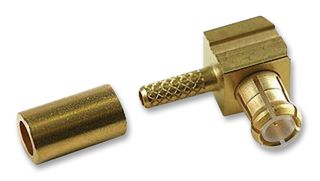

PLUG, MCX, RIGHT ANGLE, CRIMP for RG174
Varenummer:
126-109
Varekode:
R113182000W
Vægt:
0 g
Lagerstatus:
Ikke på lager
- PLUG, MCX, RIGHT ANGLE, CRIMP
- Series: -
- Connector Type: MCX Coaxial
- Body Style: Right Angle Plug
- Coaxial Termination: Crimp
- Impedance: 50ohm
- Coaxial Cable Types: RG188, RG316
- Contact Material: Brass
- Contact Plating: Gold
- Frequency Max: 6GHz
- Connector Mounting: Cable
- Body Plating: Gold
- Coaxial Connector Type: MCX
- Coaxial Type: RG174A/U
- Connector Mounting Orientation: Cable
- Contact Material: Beryllium Copper
- Material: Brass
- Mounting Type: Cable
- Operating Frequency Max: 3GHz
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Proof Voltage: 500V
- Termination Method: Crimp
- VSWR: 1.35
- Working Voltage: 170V
Stregkode:
245-5042
Intern reference:
126109
Varekode:
R113182000W
