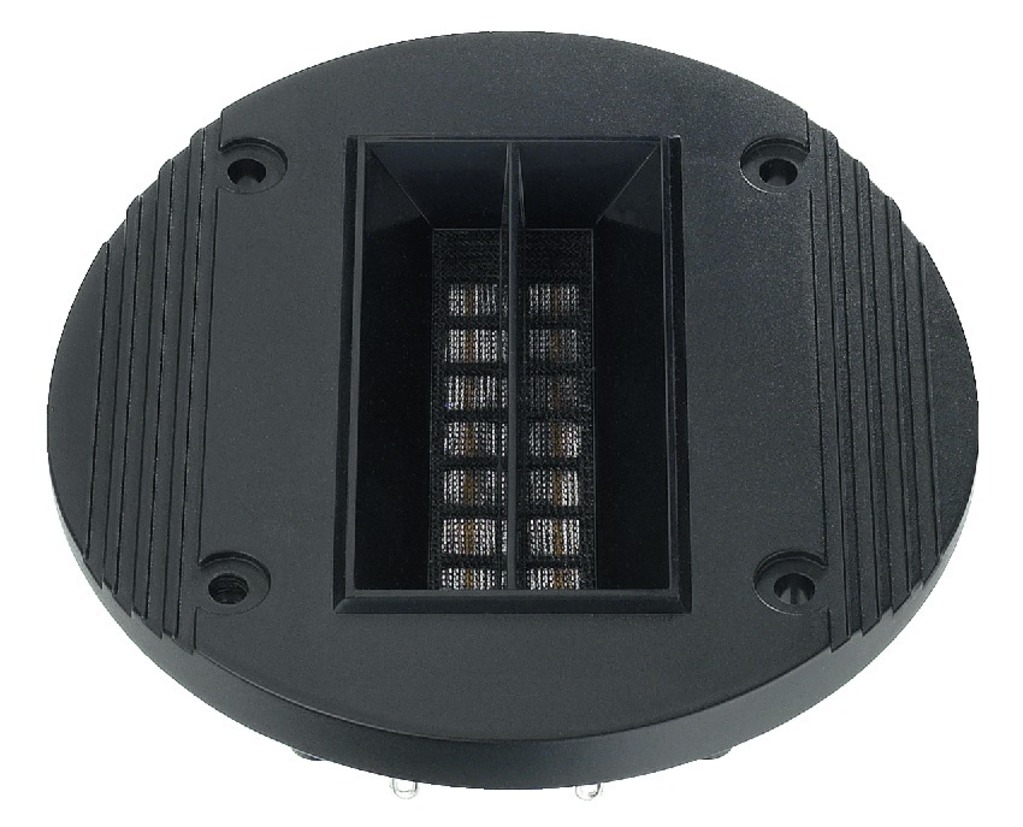

Bånddiskant 8R 30W Rund
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 4,500Hz |
| Max. frequency range | fx-22,000Hz |
| Rec. crossover freq. (12dB) | 5,000Hz |
| Music power | > 60WMAX |
| Power rating | > 30WRMS |
| SPL (1W/m) | 98dB |
| Voice coil diameter | - |
| Magnet diameter | magnetostatic speaker |
| Mounting cutout | 80x45mm |
| Mounting depth | 17mm |
| Dimensions | Ø 95mm |
| Weight | 120g |
Ribbon tweeters, 8Ω, 60WMAX, 30WRMS
These magnetostatic speakers of an exceptionally high efficiency achieve a perfectly fine dynamic reproduction of the high range and the brilliance frequency range. The power capability of the system can considerably be increased by voltage dividers (level attenuations which take tweeters to the level of normal hi-fi systems) or maybe higher crossover frequencies. These tweeters achieve a very light sound of low distortion which particularly improves the stereophony in applications from 5kHz on. By adding a super tweeter above 8-10kHz, e.g. even high-quality full range systems can be further improved.
RBT-95: round
RBT-95SQ: square
HiFi-Selbstbau, Online magazine 2008
"The most competitive magnetostatic speaker available on the German market. At applications from 5kHz on, it impresses with a high efficiency of 93dB and a low THD at a steep crossover of 12dB/oct. min."
Klang+Ton 06/2006
"A very attractive price and amazingly good measured values ... simply showed a perfect performance."
Stregkode:
4007754196542
Intern reference:
125644
Varekode:
RBT-95
