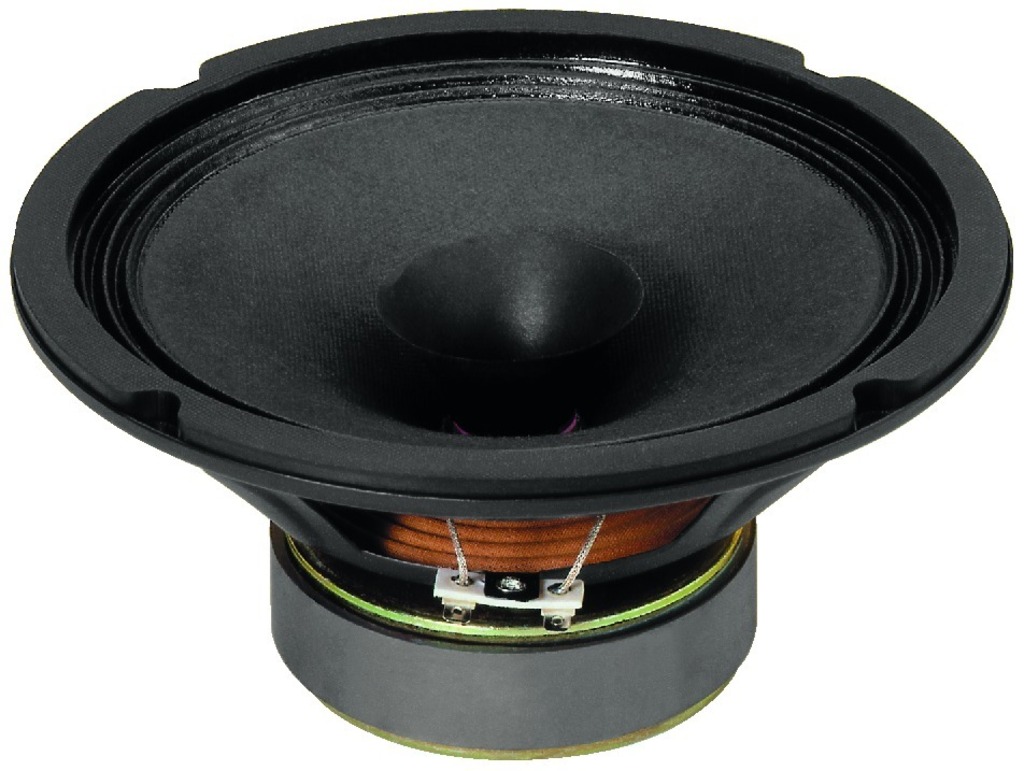

Fuldtoneenhed 8" 8 Ohm 35W
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 50Hz |
| Max. frequency range | f3-15,000Hz |
| Music power | 70WMAX |
| Power rating (P) | 35WRMS |
| SPL (1W/m) | 92dB |
| Suspension compl. (Cms) | 0.77mm/N |
| Moving mass (Mms) | 11.5g |
| Mech. Q factor (Qms) | 1.96 |
| Electr. Q factor (Qes) | 0.7 |
| Total Q factor (Qts) | 0.52 |
| Equivalent volume (Vas) | 48 l |
| DC resistance (Re) | 7.2Ω |
| Force factor (BxL) | 6.1Tm |
| Voice coil induct. (Le) | 0.3mH |
| Voice coil diameter | 25.5mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ±1.6mm |
| Eff. cone area (Sd) | 210cm2 |
| Magnet weight | 500g |
| Weight | 1.3kg |
Hi-fi Full Range Speakers with Dual Cone
A comfortable alternative to reproduce the entire frequency spectrum in a high-quality way. Hi-fi full range speaker, 70WMAX, 8Ω
With one-piece rubber gasket, very good linearity and high efficiency, an excellent full range speaker of high power capability which can be used as midrange speaker in PA systems of special sound requirements or in large column speakers.
HOBBY HiFi 01/2012
"The SPH-200X impresses by an excellent sound quality."
Datablad
Stregkode:
4007754024395
Intern reference:
125632
Varekode:
SP-200X
