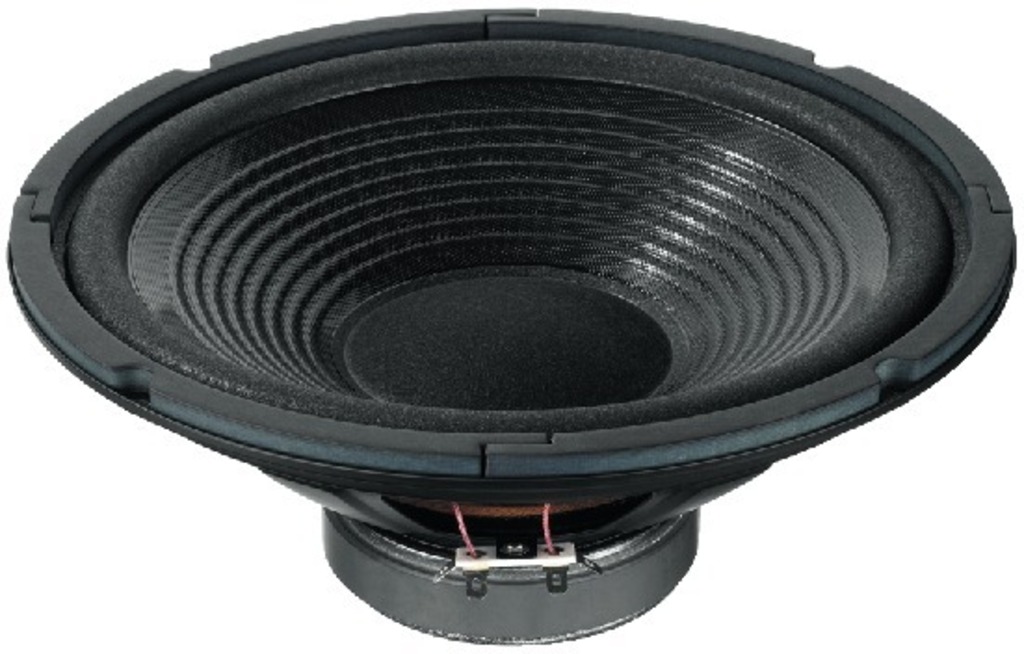

Bass speaker 10" 8 Ohm 75W
Varenummer:
125-606
Varekode:
SPP-250
Vægt:
1810 g
Lagerstatus:
Ikke på lager
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 30Hz |
| Max. frequency range | f3-3,000Hz |
| Music power | 75WMAX |
| Power rating (P) | 37WRMS |
| SPL (1W/m) | 93dB |
| Suspension compl. (Cms) | 0.92mm/N |
| Moving mass (Mms) | 30g |
| Mech. Q factor (Qms) | 3.29 |
| Electr. Q factor (Qes) | 1.25 |
| Total Q factor (Qts) | 0.90 |
| Equivalent volume (Vas) | 155 l |
| DC resistance (Re) | 6.5Ω |
| Force factor (BxL) | 5.4Tm |
| Voice coil induct. (Le) | 0.8mH |
| Voice coil diameter | 35.5mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ±3.5mm |
| Eff. cone area (Sd) | 346cm2 |
| Magnet weight | 370g |
| Weight | 1.7kg |
Speaker Series with Polypropylene Cone
Robust sheet steel basket, suitable for straightforward and efficient replacement purposes, transmission lines and free air applications. Bass speaker, 75WMAX, 8Ω
Low cutoff frequency, to be used up to the midrange.
This series of speakers with polypropylene cone is very well-suited for replacing defective 8Ω speakers in hi-fi speaker systems.
Stregkode:
4007754025606
Intern reference:
125606
Varekode:
SPP-250
