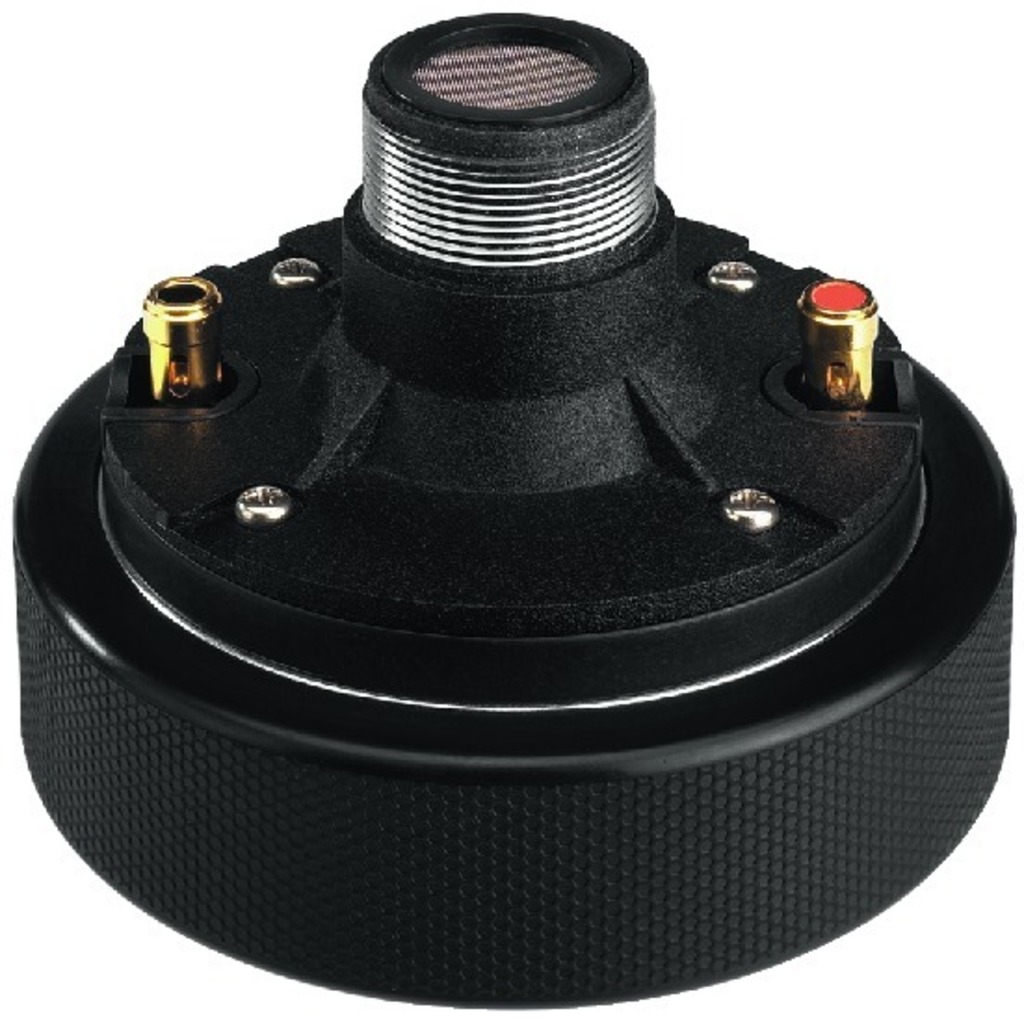

Horn driver
Varenummer:
125-541
Varekode:
MRD-120
Vægt:
1820 g
Lagerstatus:
Ikke på lager
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 1,300Hz |
| Max. frequency range | fx-17,500Hz |
| Rec. crossov. frequ. (fmax.) (12dB/oct.) | 3,000Hz |
| Music power | 100WMAX |
| Power rating (P) | 50WRMS |
| SPL (1W/1m) | 107dB |
| Radiation angle (vert./hor.) | dep. on horn |
| Voice coil diameter | 38mm |
| Magnet diameter | 120mm |
| Mounting cutout | dep. on horn |
| Mounting depth | dep. on horn |
| Dimensions | Ø 120mm x 85mm |
| Weight | 1.8kg |
- Standard 35 mm (1 3/8 ") thread
- Good, extensive frequency response linearity
- High sound pressure at low distortions
- Excellent allround driver for almost any PA application, also in combination with 38 cm (15") bass-midrange speakers or in every multi-way system, of course
- Replacement voice coil MRD-120/VC is available at option
- Suitable for horns MRH-83 and MRH-80
