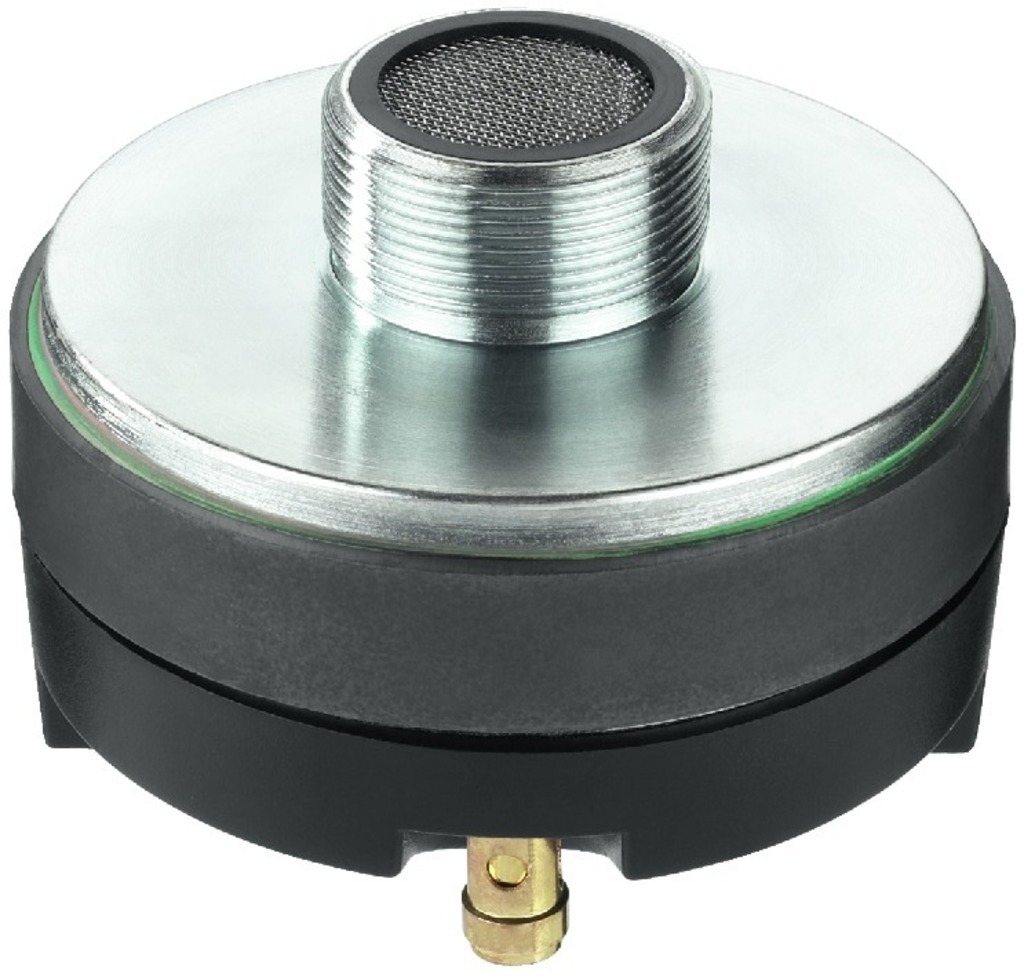

Horn driver
Varenummer:
125-540
Varekode:
MRD-34PA
Vægt:
960 g
Lagerstatus:
Ikke på lager
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 1,200Hz |
| Max. frequency range | fx-20,000Hz |
| Rec. crossov. frequ. (fmax.) (12dB/oct.) | 4,000Hz |
| Music power | 70WMAX |
| Power rating (P) | 35WRMS |
| SPL (1W/1m) | 104dB |
| Radiation angle (vert./hor.) | dep. on horn |
| Voice coil diameter | 34.5mm |
| Magnet diameter | 87mm |
| Mounting cutout | dep. on horn |
| Mounting depth | dep. on horn |
| Dimensions | Ø 87mm x 65mm |
| Weight | 1,100g |
- Standard 35 mm (1 3/8 ") thread
- Component of the speakers PAB-108MK2, PAB-110MK2 and PAB-112MK2 as well as of the matching PAKs.
- Suitable replacement voice coil PAB-128/VC is available at option
- For the horns MRH-120, MRH-83 and MRH-80
Datablad
Stregkode:
4007754214192
Intern reference:
125540
Varekode:
MRD-34PA
