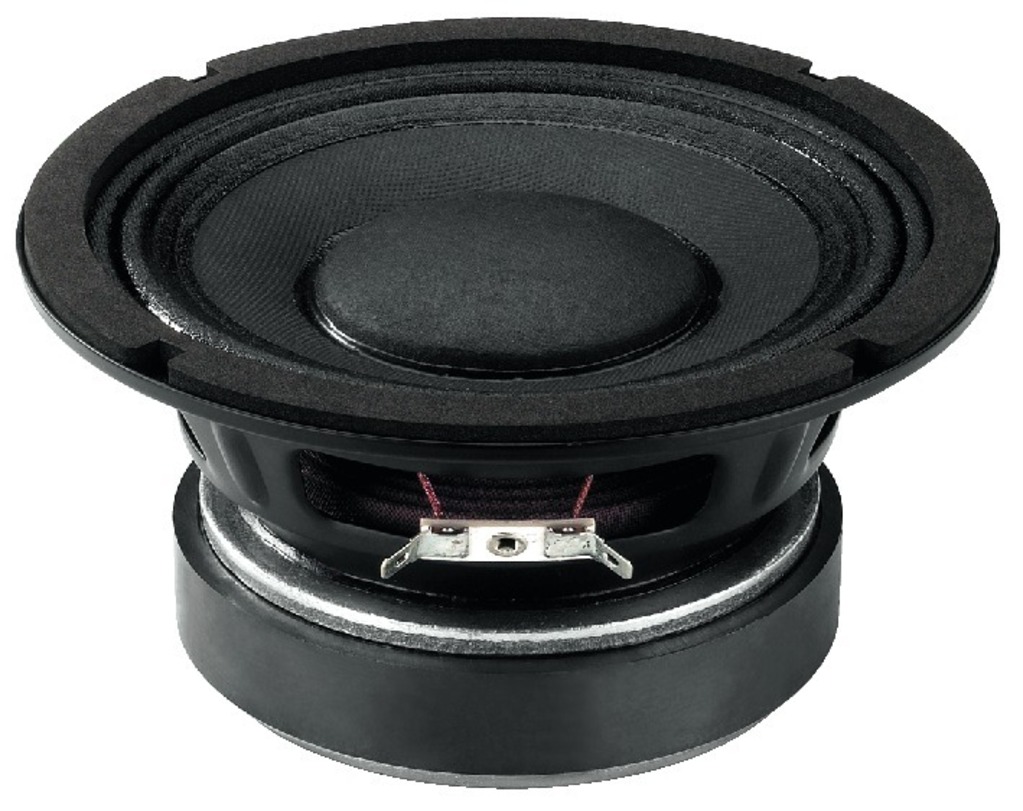

PA-midrange 6,5" 8 Ohm 100W
Varenummer:
125-518
Varekode:
SP-6/100PA
Vægt:
2370 g
Lagerstatus:
Ikke på lager
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 90Hz |
| Max. frequency range | f3-8,000Hz |
| Music power | 200WMAX |
| Power rating (P) | 100WRMS |
| SPL (1W/m) | 94dB |
| Suspension compl. (Cms) | 0.28mm/N |
| Moving mass (Mms) | 11.2g |
| Mech. Q factor (Qms) | 4.24 |
| Electr. Q factor (Qes) | 0.49 |
| Total Q factor (Qts) | 0.44 |
| Equivalent volume (Vas) | 8 l |
| DC resistance (Re) | 6.7Ω |
| Force factor (BxL) | 9.3Tm |
| Voice coil induct. (Le) | 0.5mH |
| Voice coil diameter | 40mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±0.75mm |
| Eff. cone area (Sd) | 139cm2 |
| Magnet weight | 850g |
| Weight | 2.4kg |
PA midrange speaker, 200 WMAX, 100 WRMS, 8 Ω
- Very linear frequency response
- High efficiency
- Perfect midrange speaker for powerful 3-way arrangements in the semiprofessional range
Stregkode:
4007754073690
Intern reference:
125518
Varekode:
SP-6/100PA
