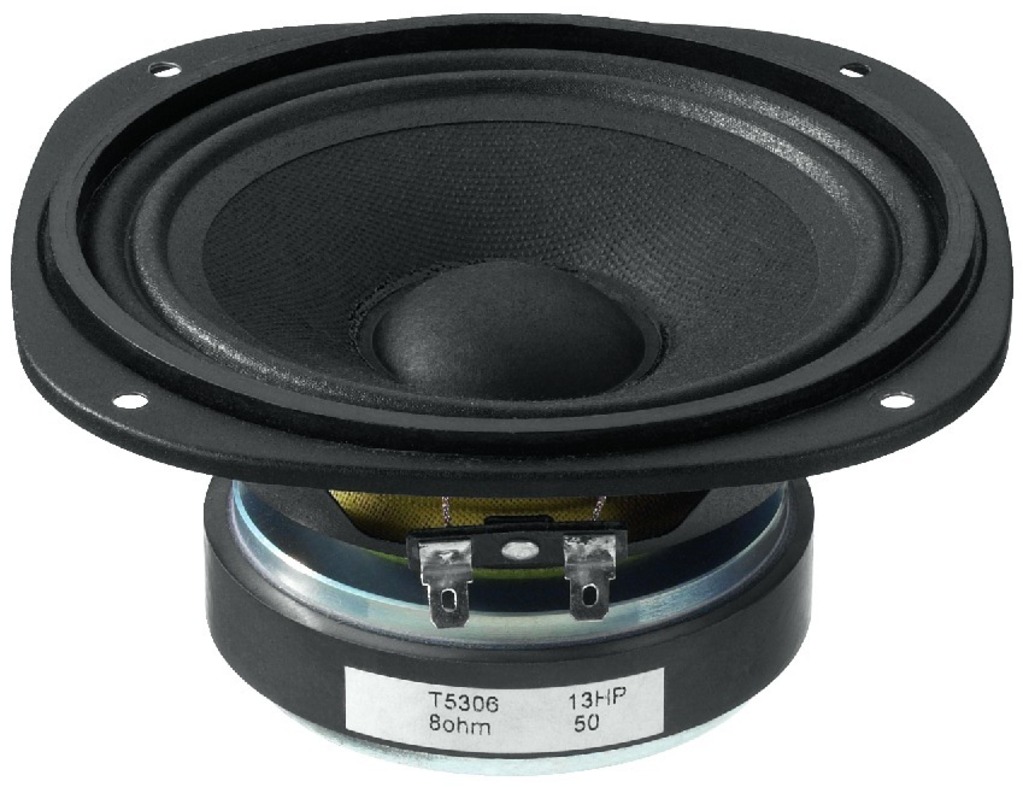

PA-Midrange 5" 8 Ohm 30W
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 110Hz |
| Max. frequency range | 300-13,000Hz |
| Music power | 75WMAX |
| Power rating (P) | 35WRMS |
| SPL (1W/m) | 93dB |
| Suspension compl. (Cms) | 0.3mm/N |
| Moving mass (Mms) | 5.5g |
| Mech. Q factor (Qms) | 2.0 |
| Electr. Q factor (Qes) | 0.68 |
| Total Q factor (Qts) | 0.51 |
| Equivalent volume (Vas) | 2.5 l |
| DC resistance (Re) | 6.2Ω |
| Force factor (BxL) | 6.2Tm |
| Voice coil induct. (Le) | 0.33mH |
| Voice coil diameter | Ø 25mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±1.1mm |
| Eff. cone area (Sd) | 105cm2 |
| Magnet weight | 370g |
| Weight | 0.9kg |
CELESTION
One of the most appealing names in the world of speakers. The speakers of the TF series impress by both an excellent price-performance ratio and very good sound characteristics and thus are ideally suited for an application in efficient PA speaker systems providing a powerful sound.
PA midrange speaker, 75WMAX, 30WRMS, 8Ω
- 13cm (5") compact PA midrange speaker with a very wide radiation range
- High-quality Kevlar fibre reinforced cellulose cone
- Very linear frequency response and wide bandwidth
- Heat-resistant 25mm (1") voice coil on a Kapton voice coil former
- Ideally suited for multiple arrangements in line arrays or column speakers
- Very good sound quality and thus also suitable for hi-fi applications
- Also ideally suited for monitor speakers of smallest size with respective subwoofer support
HiFi-Selbstbau, Online magazine 2008
"The TRUVOX-0510 from CELESTION is a small but powerful midrange speaker of the old school and is available at a really reasonable price."
Stregkode:
739894530644
Intern reference:
125504
Varekode:
TF-0510
