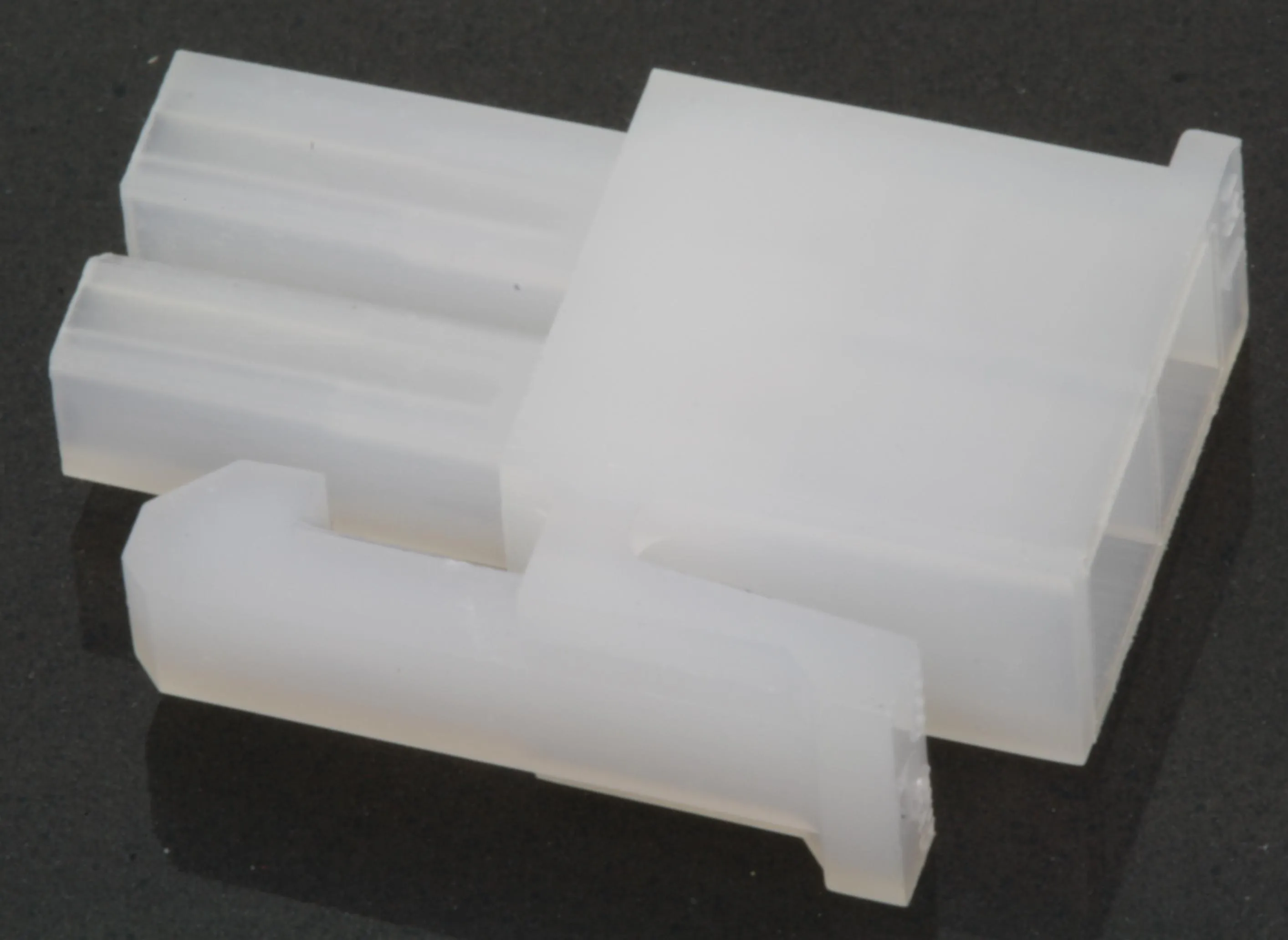

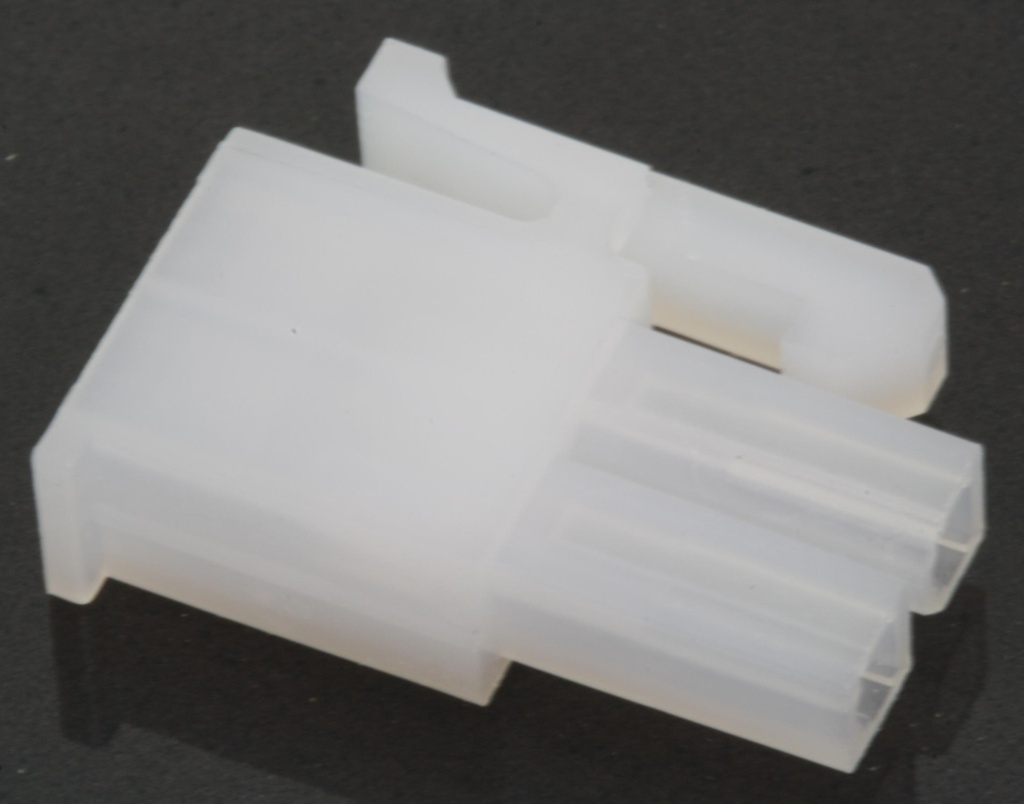

Mini-Fit Crimp housing HUN 2-pol
Varenummer:
124-672
Varekode:
39-01-2020
Vægt:
0 g
Lagerstatus:
Ikke på lager
- RECEPTACLE, MINI-FIT, 2WAY ,CRIMP
- Connector Mounting: Cable
- For Use With: 5556, 44485 Mini-Fit Crimp Terminals
- Series: 5557
- Approval Bodies: CSA / UL
- Connector Insert Type: Female
- Connector Type: Rectangular Power
- Contact Material: Brass
- Contact Resistance: 10mohm
- Contact Termination: Crimp
- Current Rating: 9A
- Dielectric Strength: 1500V/m
- Flammability Rating: UL94V-2
- Gender: Receptacle
- Material: Clear nylon
- No. of Contacts: 2
- No. of Poles: 2
- No. of Positions: 2
- No. of Rows: 2
- No. of Ways: 2
- Pitch Spacing: 4.2mm
- Row Pitch: 4.2mm
- Termination Method: Crimp
- Voltage Rating V AC: 250V
- Working Voltage: 600V
- 5557-02R / 3901-2020
Stregkode:
484-1748
Intern reference:
124672
Varekode:
39-01-2020
