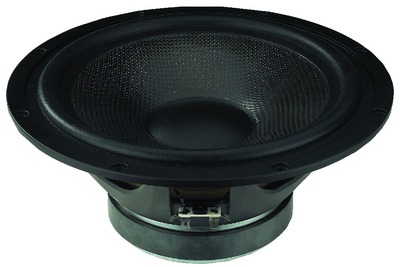

10" (276mm) højttaler 8Ω, 200W
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 31Hz |
| Max. frequency range | f3-4,000Hz |
| Music power | 200WMAX |
| Power rating (P) | 120WRMS |
| SPL (1W/m) | 91dB |
| Suspension compl. (Cms) | 0.54mm/N |
| Moving mass (Mms) | 48.33g |
| Mech. Q factor (Qms) | 6.41 |
| Electr. Q factor (Qes) | 0.30 |
| Total Q factor (Qts) | 0.29 |
| Equivalent volume (Vas) | 100 l |
| DC resistance (Re) | 6.1Ω |
| Force factor (BxL) | 13.83Tm |
| Voice coil induct. (Le) | 1.0mH |
| Voice coil diameter | 50mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±6mm |
| Eff. cone area (Sd) | 363cm2 |
| Magnet weight | 1.1kg |
| Weight | 3.9kg |
Hi-fi Bass Speakers and Hi-fi Bass-Midrange Speakers
Extra high quality, of perfect manufacturing quality and elegant design, with aluminium basket, carbon fibre cone and extra long excursion, an impulsive and deep bass reproduction from a partly surprisingly small size. High-end bass speaker, 200WMAX, 8Ω,
with perfect cone geometry and long excursion, remarkably small loss and excellently low distortion for an impressive fundamental bass in any high-quality hi-fi 3-way combination and powerful subwoofers.
Stregkode:
4007754157659
Intern reference:
123982
Varekode:
SPH-275C
