10" (274mm) højttaler 8Ω, 200W
Varenummer:
123-981
Varekode:
SPH-10M
Vægt:
4420 g
Lagerstatus:
Ikke på lager
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 29Hz |
| Max. frequency range | f3-2,000Hz |
| Music power | 200WMAX |
| Power rating (P) | 120WRMS |
| SPL (1W/m) | 89dB |
| Suspension compl. (Cms) | 0.41mm/N |
| Moving mass (Mms) | 69g |
| Mech. Q factor (Qms) | 2.62 |
| Electr. Q factor (Qes) | 0.60 |
| Total Q factor (Qts) | 0.49 |
| Equivalent volume (Vas) | 73.5 l |
| DC resistance (Re) | 6.5Ω |
| Force factor (BxL) | 11.5Tm |
| Voice coil induct. (Le) | 1.1mH |
| Voice coil diameter | Ø 50mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 6.25mm |
| Eff. cone area (Sd) | 363cm2 |
| Magnet weight | 1.1kg |
| Weight | 3.85kg |

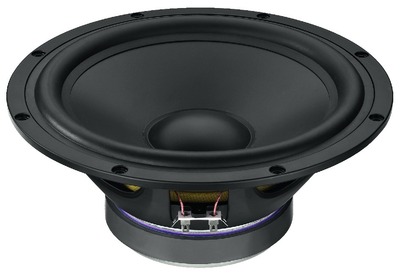

Hi-fi bass speaker, 200WMax, 8Ω
- High-quality hi-fi bass speaker of long excursion
- Very deep bass reproduction
- Dampened, robust and low-resonance polypropylene cone
- Robust diecast aluminium basket of an attractive design with an 8-hole screw connection
- Magnetic system with drilled pole core and protruding pole plate
- For general applications in bass-reflex, TML and closed speaker systems
Stregkode:
4007754223057
Intern reference:
123981
Varekode:
SPH-10M
