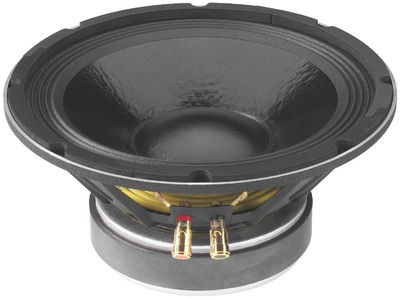

PA-woofer/midrange 10" 8 Ohm 300W
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 55Hz |
| Max. frequency range | f3-3,500Hz |
| Music power | 600WMAX |
| Power rating (P) | 300WRMS |
| SPL (1W/m) | 98dB |
| Suspension compl. (Cms) | 0.24mm/N |
| Moving mass (Mms) | 35g |
| Mech. Q factor (Qms) | 7.44 |
| Electr. Q factor (Qes) | 0.31 |
| Total Q factor (Qts) | 0.30 |
| Equivalent volume (Vas) | 40 l |
| DC resistance (Re) | 6.4Ω |
| Force factor (BxL) | 15.82Tm |
| Voice coil induct. (Le) | 0.65mH |
| Voice coil diameter | 66mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±4mm |
| Eff. cone area (Sd) | 346cm2 |
| Magnet weight | 2kg |
| Weight | 5kg |
Professional Speakers from IMG Stage Line
Of very high power capability, high efficiency and with drive parameters which allow a reproduction of the complete bass range. These speakers guarantee excellent results as bass-midrange speakers in 2-way or multiway systems as well as subwoofers with the two larger models. Professional PA bass-midrange speaker, 600WMAX, 300WRMS, 8Ω
25cm (10") professional speaker of very high power capability and quite long excursion, diecast basket, cone with water-repellent coating, very neat workmanship with a facing basket front, wide frequency response of low distortion and high efficiency, the drive system features a drilled pole core and an additional magnet for optimising the magnetic field and impedance linearisation. Suitable for compact bass-reflex cabinets from 20 litres on already. A very good speaker for all kinds of professional and semiprofessional PA applications.
Datablad
Stregkode:
4007754191042
Intern reference:
123975
Varekode:
SP-10A/302PA
