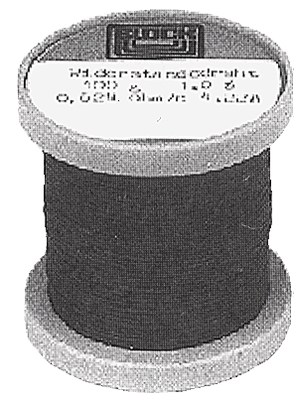

Modstands-/varmetråd Konstantan - 2,0 mm. - 0 ,156 Ω/m. - 1 meter
Varenummer:
123-085
Varekode:
RD-100/2,0 MM
Vægt:
110 g
Lagerstatus:
Ikke på lager
Der er 3,50 meter på fyldt rulle.
Tekniske data
| Kabeltype | Modstandstråd |
| Lederresistans | 0.156 Ω/m |
| Ø tråd | 2 mm |
| Længde | 3 m |
| Leder | Cu-Ni 44 |
| Resistivtet | 0,49 (Ω x mm²/m) |
| Temperaturkoefficient | 0,00004...0,00008 K-1 |
| Temperaturområde | -30...+600 °C |
Produktbeskrivelse
Information
| Producent | Block |
| Producentvarenr. | RD 100/2,0 MM |
| Oprindelsesland | DE |
| Vægt (hel rulle) | 110 g |
| RoHS information | Opfylder RoHS-direktivet |
TECHNICAL DATA FOR RD 100/2,0
| Operating data | |
|---|---|
| Current intensity for wire temperature (100°C) | 10.000 A |
| Current intensity for wire temperature (200°C) | 16.800 A |
| Current intensity for wire temperature (300°C) | 22.700 A |
| Highest wire temperature | to 600 °C |
| Mean linear coefficient of thermal expansion between 20 - 100 °C | 13.5x10-6 |
| Mean temperature coefficient of resistance at 20 °C | 0.00004-0.00008 |
| Melting point | 1220-1270 °C |
| Resistance | 0.156 Ω/m |
| Specific electrical resistance | 0.49 (Ω x mm²)/m |
| Measures and weights | |
|---|---|
| Length m (min.) | 3 |
| Wire diameter | 2.00 mm |
| Weight | 0.10 kg |
| Notes | |
|---|---|
| Notes | The specified wire temperatures apply for blank Isotan wires, especially unclamped in still air. Oxidized wires have a higher radiated temperature. The current load precisely required for a defined temperature can ultimately only be explicitly determined for the relations and requirements on the customer side for the specified intended use. |
Stregkode:
749-6354
Intern reference:
123085
Varekode:
RD-100/2,0 MM
