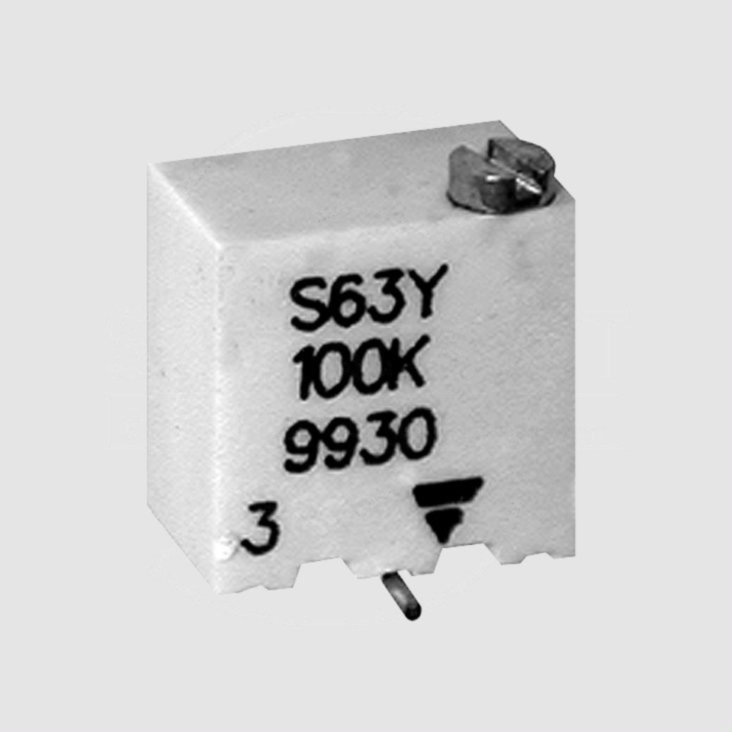

SMD Multiturn Cermet Trimmer Y 50R
Varenummer:
122-960
Varekode:
TS63YE050
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe: C2611
VISHAY SMD Multiturn Cermet Trimmers
Series: TS63Y
Power: 0,25W
Shaft: Slot, Top Adjustment
Pitch: 2,54mm

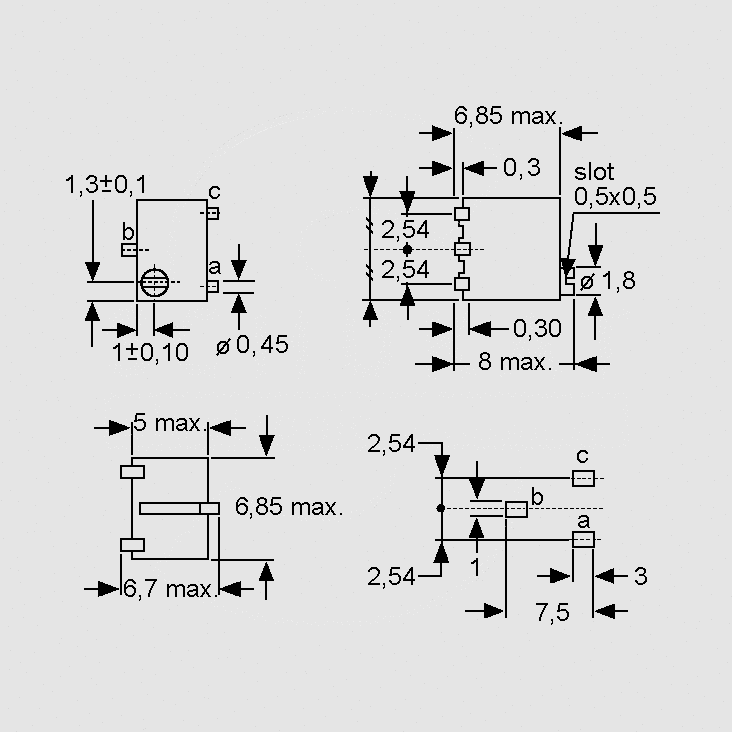

Housing: 6,85x5,0mm
| General Specifications |
 |
|||||||||||
| Standard Tolerance: | ±10% | Resistive Element: | Cermet | Temperature Range: | -55...+155°C | Climatic Category: | 55/125/56 | Sealing: | IP67 | ||
|
|||||||||||
| Mechanical Specifications |
|
|||||||||
| Mechanical Travel: | 15 ±5 | Operating Torque, End Position: | Clutch Action | Operating Torque (Max.): | 1,5Ncm | Weight: | 0,5g | ||
|
|||||||||
| Electrical Specifications |
|
|||||||||||||||||
| Resistance Law: | Linear | Electrical Travel: | 13 ±2 | Power Rating (85°C): | 0,25W | Maximum Voltage: | 250V | Dielectric Strength (RMS): | 1000V | Insulation Resistance (500V DC): | 106MW | End Resistance (Typ.): | 1W | Temperature Coefficient (Typ., RN³100W): | ±100ppm/°C | ||
|
|||||||||||||||||
| Part Nr. | R | PMax. | UMax. | IMax. | W | [W] | [V] | [mA] | TS63YE100 | 100 | 0,25 | 5,0 | 50 | TS63YE500 | 500 | 0,25 | 11,2 | 22 | TS63YK001 | 1K | 0,25 | 15,8 | 15,8 | TS63YK002 | 2K | 0,25 | 22,3 | 11,2 | TS63YK005 | 5K | 0,25 | 35,3 | 7,1 | TS63YK010 | 10K | 0,25 | 50,0 | 5,0 | TS63YK050 | 50K | 0,25 | 112 | 2,2 | TS63YK100 | 100K | 0,25 | 158 | 1,6 | TS63YK500 | 500K | 0,13 | 250 | 0,50 | ||||||
| R = Resistance, PMax. = Power, Max. (+85°C), UMax. = Operating Voltage, Max., IMax. = Transmission Current, Max. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Norms |
| CECC41000 |
|
| Labelling |
| Manufacturers trademark, series, ohmic value (W, kW, MW), manufacturing date, marking of terminal C, tolerance in % (only when no standard tolerance is available) |
|
| Additional Products |
| Other articles of 500 pieces available on request, delivery time approx. 12 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces Form of delivery: orders of 50 pieces in tube |
|
| Manufacturer |
Vishay/Sfernice |
| http://www.vishay.com |
|
Stregkode:
122960
Intern reference:
122960
Varekode:
TS63YE050
