Minijack 4-pol - 3 x phono kabel
Brand: Valueline

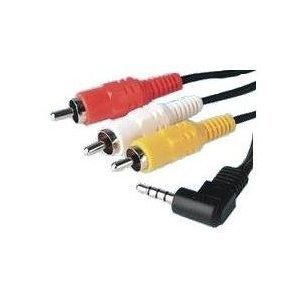

3x phono plug - 3.5mm jack plug (3-rings), 1.20m
Pin-out (counted from tip to bottom)
Tip - Video/billede (gul)
2e ring - Left/venstre (hvid)
3e ring - Right/højre (rød)
4e ring - Ground/stel
| Brand | Valueline |
| Usage | Video |
| Connector 1 | 3x RCA Male |
| Connector 2 | Jack AV Male 3.5mm |
| Gold Plated | No |
| Length | 1,5 m |
| Connector 1 Type | Straight |
| Connector 2 Type | Angle 90¤ |
A four pole right-angled 3.5mm jack plug to 3 phono plugs cable suitable for connecting a digital camcorder or portable DVD player to A/V equipment or a computer. The three phono plugs are colour coded for composite video (yellow) and stereo audio (red and white). This cable is 1,5m. long and the 3.5mm 4 pole jack has an alternative wiring configuration which is not suitable for Sony or Panasonic equipment.
Kan formentlig bruges som alternativ til "Samsung TV AV IN adaptor", sammen med nedenstående adapter.
