DIP Switch Standard 7-Pole
Varenummer:
122-282
Varekode:
EDG07S
Vægt:
0 g
Lagerstatus:
Ikke på lager
Features
| • Bottom epoxy sealed against flux immersion |
 |
| Electrical Specifications |
|
|
| Switching Capacity: | 25mA/24V DC |
| Transmission Current: | 100mA/50V DC |
| Contact Resistance, Max. | |
| New State: | 50mOhm |
| After Operating Life Test: | 100mOhm |
| Insulation Resistance (100V DC), Min.: | 1000MOhm |
| Dielectric Strength, Min.: | 500V DC/1min. |
| Capacity of Adjacent Switch, Max.: | 5pF |
|
|
| Technical Specifications |
|
|
| Insulation Shell: | UL94-0, Blue |
| Solder Pin | |
| EDG_S: | Gold over Nickel |
| EDG_S33: | Tinned |
| Contact Finish: | Gold over Nickel |
| Operating Temperature: | -25...+70°C |
| Storage Temperature: | -40...+85°C |
| Operating Force, Max.: | 800g |
| Switching Capability: | 2000 Operations |
| Air Humidity: | 95% RH, 40°C/96h |
| Vibration Test: | MIL-STD-202F, Method 204D |
|
|

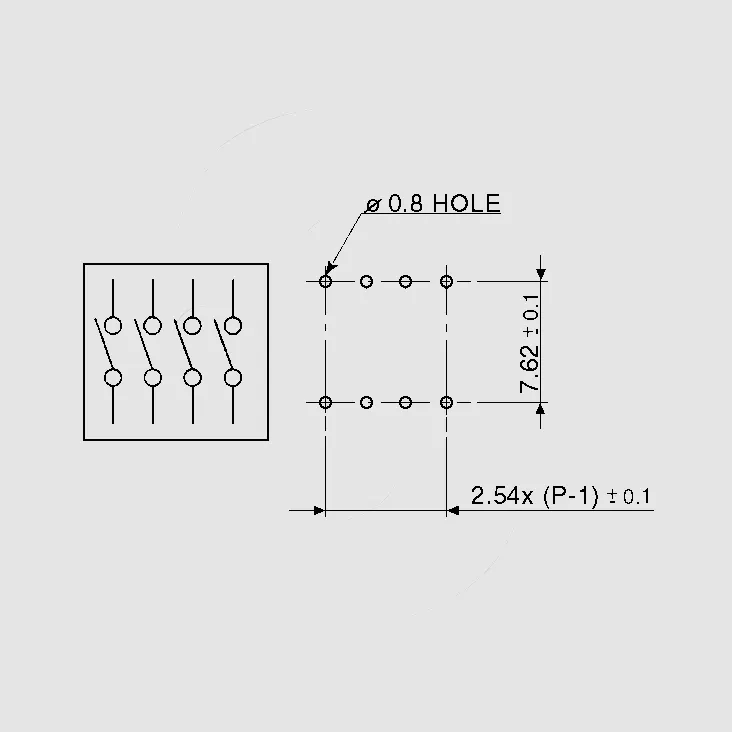

| Pitch |
|
|
| Pitch: | 2,54mm |
| Spacing Between Rows: | 7,62mm |
|
|
| Dimensions and Packing Units |
| Part Nr. | Switch | A | PKU |
| [mm] | [Single Item/Tube] | ||
| EDG02S | 2 | 6,7 | 80 |
| EDG102S33 | 2 | 6,7 | 80 |
| EDG03S | 3 | 9,2 | 58 |
| EDG103S33 | 3 | 9,2 | 58 |
| EDG04S | 4 | 11,7 | 44 |
| EDG104S33 | 4 | 11,7 | 44 |
| EDG06S | 6 | 16,7 | 31 |
| EDG106S33 | 6 | 16,7 | 31 |
| EDG08S | 8 | 21,7 | 23 |
| EDG108S33 | 8 | 21,7 | 23 |
| EDG10S | 10 | 26,7 | 19 |
| EDG110S33 | 10 | 26,7 | 19 |
|
|||
