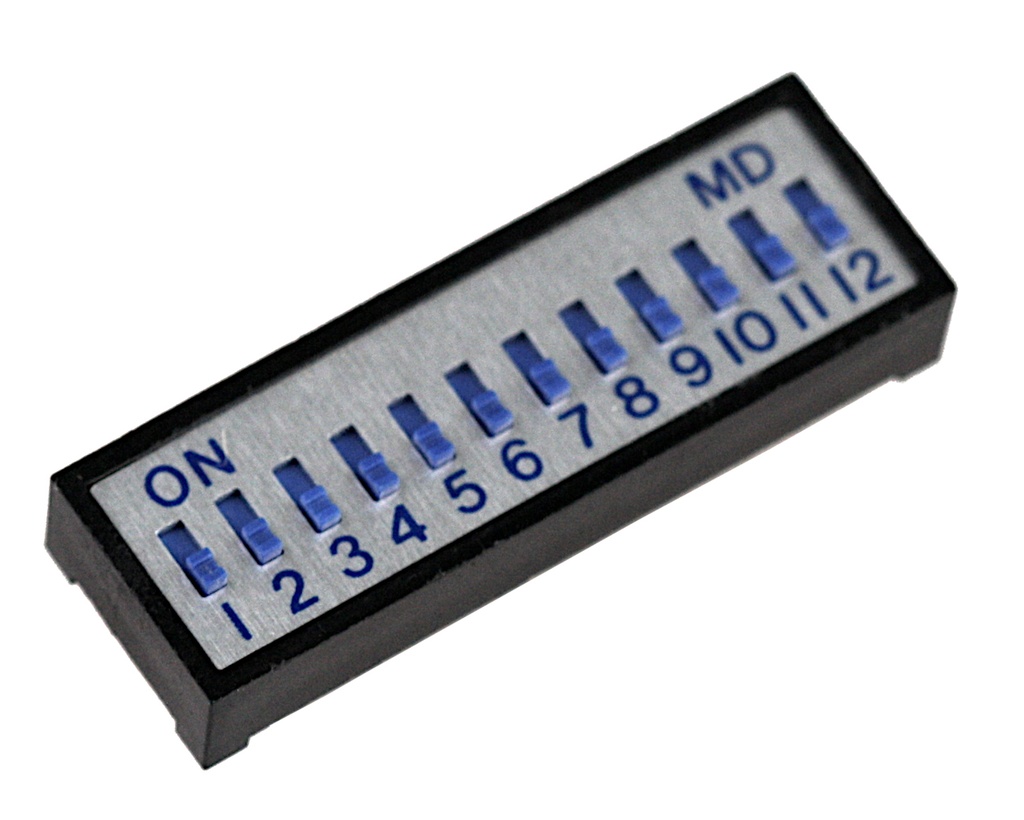

DIP Switch Standard 12-Pole
Varenummer:
122-277
Varekode:
MD12S
Vægt:
0 g
Lagerstatus:
Ikke på lager
Electrical Specifications
 |
|
| Switching Capacity: | 25mA/24V DC |
| Transmission Current: | 100mA/50V DC |
| Contact Resistance, Max. | |
| New State: | 50mOhm |
| After Operating Life Test: | 100mOhm |
| Insulation Resistance (100V DC), Min.: | 1000MOhm |
| Dielectric Strength, Min.: | 500V DC/1min. |
| Capacity of Adjacent Switch, Max.: | 5pF |
|
|
| Technical Specifications |
|
|
| Insulation Shell: | UL94-0, Blue |
| Solder Pin | |
| EDG_S: | Gold over Nickel |
| EDG_S33: | Tinned |
| Contact Finish: | Gold over Nickel |
| Operating Temperature: | -25...+70°C |
| Storage Temperature: | -40...+85°C |
| Operating Force, Max.: | 800g |
| Switching Capability: | 2000 Operations |
| Air Humidity: | 95% RH, 40°C/96h |
| Vibration Test: | MIL-STD-202F, Method 204D |
|
|
| Pitch |
|
|
| Pitch: | 2,54mm |
| Spacing Between Rows: | 7,62mm |
|
|
Stregkode:
122277
Intern reference:
122277
Varekode:
MD12S
