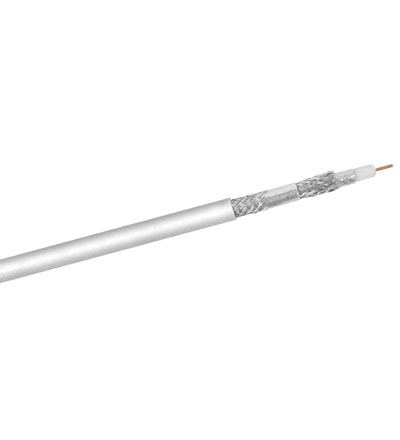

7,2mm COAX-kabel, 4-dobbelt skærmet, 75 ohm, Hvid, 1m
Varenummer:
122-259
Varekode:
W27518
Vægt:
60 g
Lagerstatus:
Ikke på lager
120 dB coax- antenna cable, 4x shielded, CCS, 100 m, white
|
|
for digital SAT- and CATV-cable systems
- digital-ready for HDTV using DVB-S/S2, DVB-T/T2, DVB-C/C2
- quadruple signal shield for particular protection over long distances
- meter scaling on the cable simplifies building installation
- delivered on a simple cardboard cable spool
Technical specifications
- Performance
- Fire class according to DIN EN 13501-6 Eca
- Cable
- Cable type round cable
- Dielectric diameter 4.6
- Cable sheath diameter (approx.) 6.9 mm
- Inner conductor materialCCS 15 (15% copper-clad steel)
- Cable length 100 m
- Number of shieldings 4 x
- Meter scaling yes
- Type 1, shieldingfoil (aluminum)
- Type 2, shielding braid (aluminum) 64x
- inner conductor, core diameter 1.1
- Type 3, shieldingfoil (aluminum)
- Type 4, shieldingbraid (aluminum) 64x
- Shielding efficiency 120 dB
- Signal transmission
- Impedance 75 Ω
- General
- Consumption Unit 1 pc. cable reel
- Outer sheath material PVC
- Color white
- Operating temperature from -20 °C
- Operating temperature up to 75 °C
- Weight 4978 g
-
Stregkode:
4040849275180
Intern reference:
122259
Varekode:
W27518
