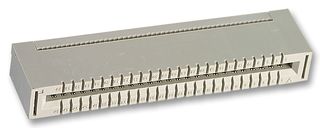

Kantconnector 2x25-pol RM2,54 Fladkabel

Varenummer:
122-187
Varekode:
801-50
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 30,00 30.0 DKK kr 30,00 Inklusiv moms kr 198,75

kr 30,00 Inklusiv moms kr 198,75

Anmod os om en pris

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/72608/image_1920?unique=84270ad https://elektroniklavpris.odoo.com/web/image/product.template/72608/image_1920?unique=84270ad
  • SOCKET, IDC, CARD EDGE, 50WAY
  • Connector Type: Card Edge
  • Series: 6338
  • Pitch Spacing: 2.54mm
  • No. of Contacts: 50
  • Gender: Receptacle
  • Contact Termination: IDC / IDT
  • No. of Rows: 2
  • Contact Plating: Gold
  • Contact Material: Copper
  • SVHC: No SVHC (18-Jun-2012)
  • Colour: Black
  • Connector Mounting Orientation: Flat cable
  • Connector Type: Card Edge
  • Contact Current Rating: 1A
  • Contact Material: Copper Alloy
  • Contact Plating: Gold over Nickel
  • External Depth: 20mm
  • External Length / Height: 74mm
  • Flammability Rating: UL94V-0
  • Housing Type: Glass Filled PBT Polyester
  • IDC Cable Pitch: 0.05"
  • Insulation Resistance: 1000Mohm
  • Material: Polyester
  • Mounting Type: PC Board
  • No. of Poles: 50
  • No. of Ways: 50
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -55°C
  • Terminal Plating: Tin / Lead
  • Termination Method: IDC
  • Voltage Rating V AC: 350V
Kontakt os

Stregkode: 122187
Intern reference: 122187
Varekode: 801-50
