NPN 70V 7A 50W TO3
Type Designator: 2SC521A
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 50 W
Maximum Collector-Base Voltage |Vcb|: 70 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 7 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 5 MHz
Collector Capacitance (Cc): 250 pF
Forward Current Transfer Ratio (hFE), MIN: 30

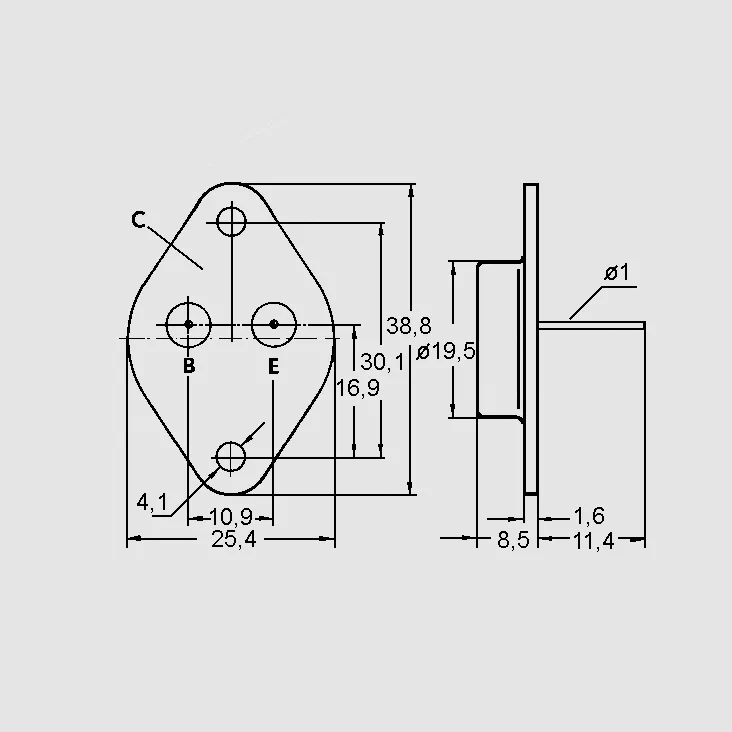

Package: TO3
Stregkode:
121924
Intern reference:
121924
Varekode:
2SC521A
