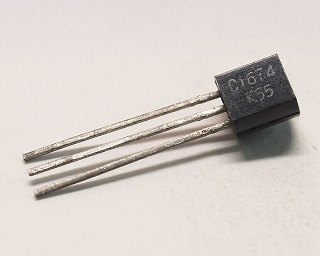

NPN FM-in/mix/osc 30V 20mA 0,25W TO92
Type Designator: 2SC1674
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.25 W
Maximum Collector-Base Voltage |Vcb|: 30 V
Maximum Collector-Emitter Voltage |Vce|: 20 V
Maximum Emitter-Base Voltage |Veb|: 4 V
Maximum Collector Current |Ic max|: 0.02 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 300 MHz
Collector Capacitance (Cc): 2 pF
Forward Current Transfer Ratio (hFE), MIN: 40
Package: TO92
Stregkode:
121920
Intern reference:
121920
Varekode:
2SC1674
