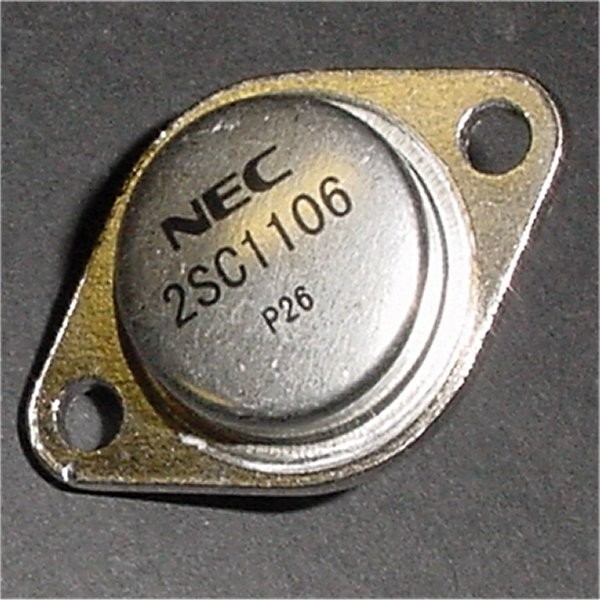

NPN 350V 3A 80W TO3
Varenummer:
121-915
Varekode:
2SC1106
Vægt:
0 g
Lagerstatus:
Ikke på lager
Type Designator: 2SC1106
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 80 W
Maximum Collector-Base Voltage |Vcb|: 350 V
Maximum Collector-Emitter Voltage |Vce|: 230 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 10 MHz
Forward Current Transfer Ratio (hFE), MIN: 40

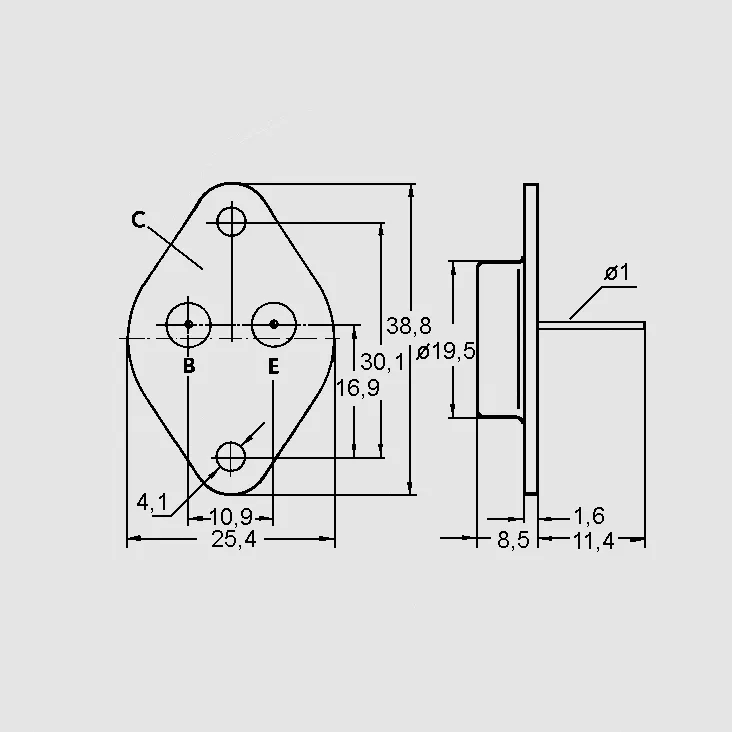

Package: TO3
Stregkode:
121915
Intern reference:
121915
Varekode:
2SC1106
