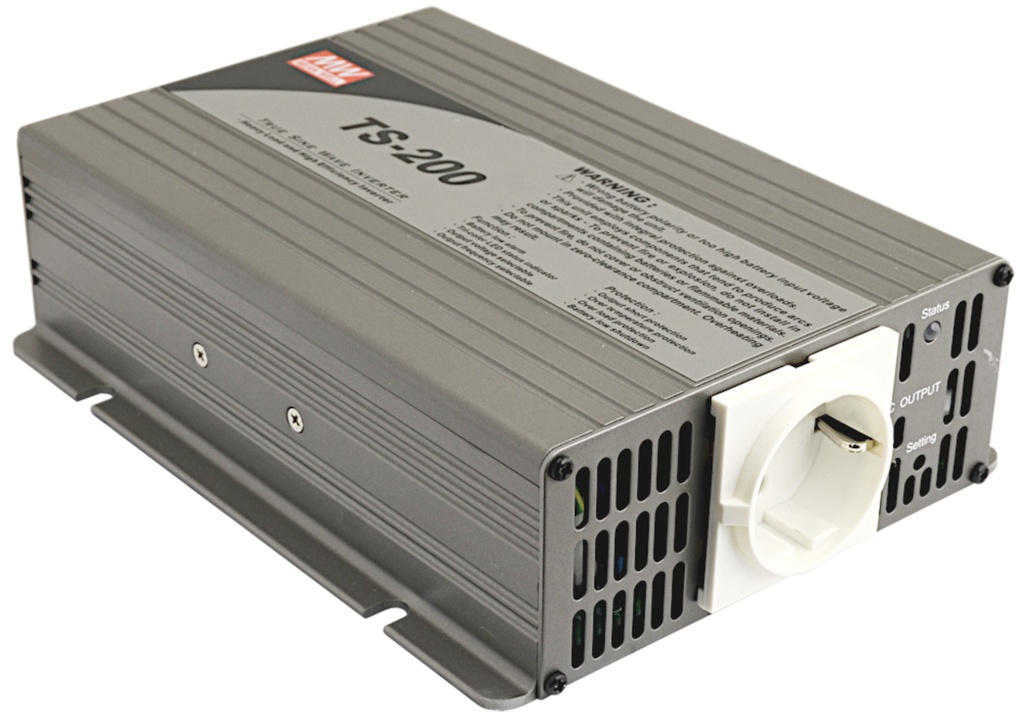

DC/AC-Conv 48V/230V 200W REN SINUS
Varenummer:
121-703
Varekode:
TS-200-248B
Vægt:
1800 g
Lagerstatus:
Ikke på lager
Gruppe: L9241
MEANWELL DC/AC Converters
Series: TS-200
With True Sine Wave Output
Output: 200W
| Features |
| • True sine wave output (THD 3%) • Power On/Off switch • Front panel indicator for operation status • Battery low alarm, Battery low shutdown • Protections: over voltage/over temperature/over load/output short/input reverse polarity • Cooling by free air convention |
 |
| Technical Specifications |
|
|||||||||||||||||||||||||||
| Input Voltage: | See Table | Output Voltage, Selectable: | 200/220/230/240V AC | Output Voltage Tolerance: | ±3% | Output Frequency: | 50Hz ±0,1% | Output Rated Power: | 200W | Peak Power: | 230W/180s | 300W/10s | 400W/30 Cycles | Wave Form: | True Sine, THD 3% | Operating Temperature | 100% Load: | -10...+35°C | 50% Load: | -10...+60°C | Weight: | 1630g | |||||
|
|||||||||||||||||||||||||||
| Part Nr. | UE | IE | UBA | UBL | h | [V] | [A] | [V] | [V] | [%] | TS-200-212B | 10,5...15 | 20 | 11,3 | 10,5 | 86 | TS-200-224B | 21...30 | 10 | 22,5 | 21 | 87,5 | TS-200-248B | 42...60 | 5 | 45 | 42 | 88 | |||||||
| UE = Input Voltage Range, IA = Input Current, UBA = Battery Low Alarm, UBL = Battery Shutdown, h = Efficiency | |||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
| Labelling |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.meanwell.com |
|
Stregkode:
121703
Intern reference:
121703
Varekode:
TS-200-248B
