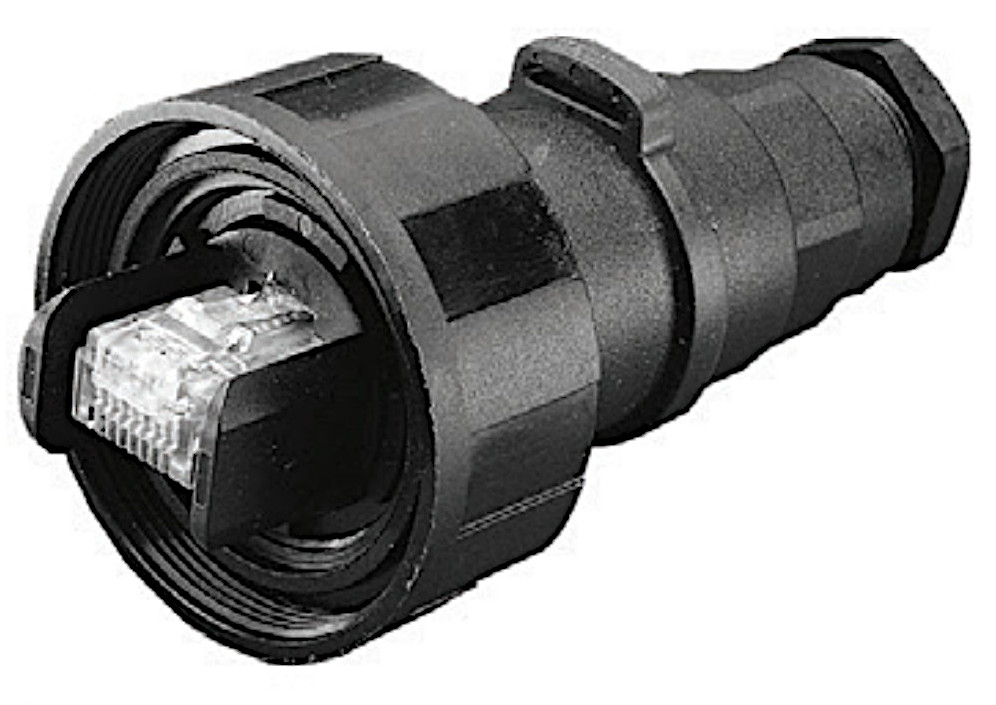

Cat.5e/flex/stp IP68 Modular RJ45, 3,5-8mm
Varenummer:
121-575
Varekode:
PX0834/B
Vægt:
30 g
Lagerstatus:
Ikke på lager
Gruppe: F4470
BULGIN Ethernet Connectors
Series: Ethernet Buccaneer
Waterproof IP68
| Features |
| • Dust and waterproof sealing when mated • Cat.5e compliant: Data rate up to 100MHz • PUR jacket on cable and shielded system: high noise immunity and EMI protection • Cat.5e shielded coupler • Shroud on RJ45: Protection from abouse and mis-mating • Screw coupling: secure, proven locking system • PCB mounted panel connector • IDC termination panel connector |
 |
| Technical Specifications |
|
|||||||||||||||||
| Pole: | 4 | Housing Material: | PVC, UL94V-0 | Colour: | Black | Contact Material: | Phosphor Bronze | Contact Surface: | Gold-plated | Rated Current: | 1,5A | Rated Voltage: | 30V AC | Temperature Range: | -20...+70°C | ||
|
|||||||||||||||||
| PX0833 |
| Panel Mounting Connector |
|
| Features |
| • Cat 5e shielded coupler • Matex with PX0834/B flex connector • Standard RJ45 can be plugged intro rear • Single hole fixing • With panel sealing gasket |
|
| PX0834/B |
| Re-Wireable Flex Connector |
|
| Features |
| • Mates with all panel mounting connectors • With shielded RJ45 plug • For other cable sizes from 3,5 to 8mm diameter |
|
| PX0837/_M00 |
| Patchcords with IP68 Connector and Shielded RJ45 Plug |
|
| Featutes |
| • Mates with all panel mounting connectors • Length: 2m, 3m and 5m • S-FTP cable construction • PUR jacket cable • Wiring configuration to 568-B • Exceeds EIA/TIA Cat 5e |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.bulgin.de |
|
Stregkode:
468-6226
Intern reference:
121575
Varekode:
PX0834/B
