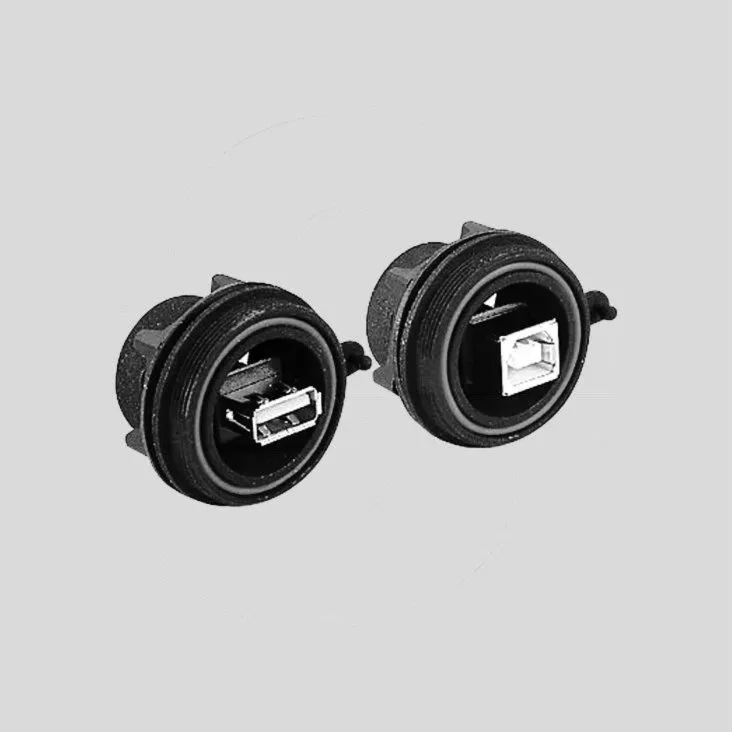

Panel Mount A Type - standard B to Rear
Varenummer:
121-571
Varekode:
PX0842/A
Vægt:
20 g
Lagerstatus:
Ikke på lager
Gruppe: F4410
BULGIN USB Connectors
Series: USB Buccaneer
Waterproof IP68
BULGIN USB Connectors
Series: USB Buccaneer
Waterproof IP68
| Features |
| • Dust and waterproof sealing when mated • Low and high speed bus connection, 1,5...450Mbs • Plug and Play: hot plug, standard 4 pole interface • High noise immunity and EMI protection • Proven locking system • Direct mounting or via adaptor leads • Corresponding USB2.0 |
 |
| Technical Specifications |
| |
| Pole: | 4 |
| Housing Material: | PVC, UL94V-0 |
| Colour: | Black |
| Contact Material: | Copper Alloy |
| Contact Surface: | Gold-plated |
| Rated Current: | 1,0A |
| Rated Voltage: | 30V AC |
| Temperature Range: | 0...+70°C |
| |
| Part Nr. | Length | Outside Ø | Signal | Power |
| PX0840/_ | [m] | [mm] | [AWG] | [AWG] |
| A(B)/2M00 | 2 | 4,8 | 2x28 | 2x24 |
| A(B)/3M00 | 3 | 5,0 | 2x28 | 2x22 |
| A(B)/5M00 | 5 | 5,2 | 2x25 | 2x24 |
| ||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.bulgin.de |
|
Stregkode:
468-6311
Intern reference:
121571
Varekode:
PX0842/A
