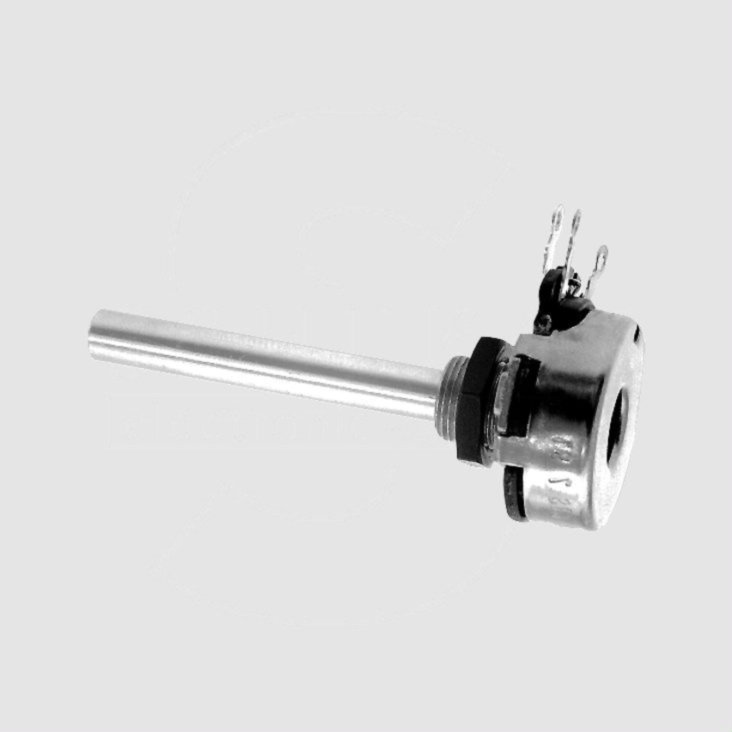

Wirewound Potentiometer 4W 25R
Varenummer:
121-218
Varekode:
PD5WE025
Vægt:
20 g
Lagerstatus:
Ikke på lager
Gruppe: C3517
AB Wirewound Rotary Potentiometers
Series: AW
Linear
Power: 4W
Shaft: Metal, Ø6,0mm
Housing: Ø24mm
| Technical Specifications |
 |
|
| Rated Dissipation (40°C): | 4W |
| Hold-off Voltage: | 500V |
| Insulation Voltage: | 1KV~ |
| Independent Linearity: | ±2% |
| Rotation Angle | |
| Mechanical: | 300° ±10° |
| Electrical: | 280° ±5° |
| Operating Torque: | 0,7...3,6Ncm |
| End Stop Torque: | 115Ncm |
| Temperature Range: | -40...+90°C |
|
|
Stregkode:
121218
Intern reference:
121218
Varekode:
PD5WE025
