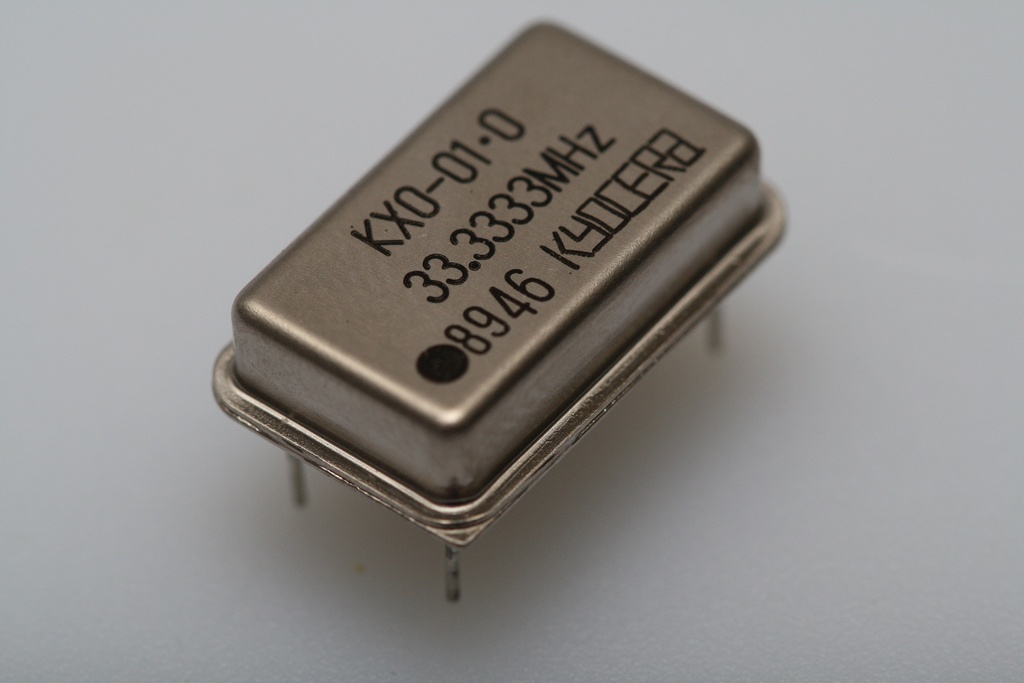

Oscillator 33,3333MHz DIL14 CMOS/TTL
Varenummer:
120-906
Varekode:
QOM033.333
Vægt:
0 g
Lagerstatus:
Ikke på lager
Fabrikat: Kyocera KXO-01-0-33.333 KXO-01-0-33.3333M
SPXO003227
Gruppe: D9325
ABUNDANCE Crystal Oscillators
Series: COC
In Metal Housing, CMOS/TTL
Frequency: 1,8432...50MHz
Housing: DIP/DIL14
| Features |
| • Suitable for CMOS and TTL • Consisting of piezoelectric resonator and oscillator circuit • High reliability due to hermetically sealed metal housing |
| Technical Specifications |
| Frequency Range: | 1,843MHz...64MHz |
| Frequency Stability: | ±100ppm |
| Temperature Range: | 0...+70°C |
| Storage Temperature: | -55...+125°C |
| Operating Voltage [VDD]: | 5± 0,5V DC |
| Current Requirement, Max. | |
| 1,843...20MHz: | 20mA |
| 24...40MHz: | 30mA |
| 50MHz: | 60mA |
| Symmetry at 50% VDDtight: | 45...55% |
| Output Voltage, Max. | |
| "1"-Level: | +4,5V(90% VDD) |
| "0"-Level: | +0,5V(10% VDD) |
| Output Load: | 15pF Typ. or 10 TTL Max. |
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
| Manufacturer |
| Abundance http://www.aeccrystal.com |
Stregkode:
120906
Intern reference:
120906
Varekode:
QOM033.333
