2-vejs kabinet sort
Music power | 70WMAX |
Power rating | 40WRMS |
Max. frequency range | 55-22,000Hz |
Impedance | 8Ω |
SPL (1W/1m) | 90dB |
Max. rated SPL | 106dB |
Dimensions | 210x350x200mm |
Weight | 3.9kg |
Connections | speaker screw terminal |
Mounting facility | 2 x thread M6 |
System |

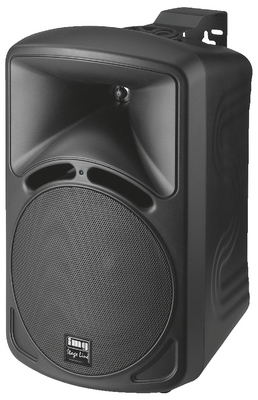

2-way speaker systems in an ABS cabinet which is both functional and at the same time of an attractive appearance (PAB-88 and PAB-68 in a bass-reflex cabinet), polypropylene bass speaker (partly with ventilated drive) and dome tweeter with horn front attachment (waveguide). High-quality crossover networks with a perfect long-term stability, e.g. due to permanently applying film capacitors. With the series, 2 kinds of sound are on offer:
PAB-88/... and PAB-58/... impress by a really fast and brilliant sound of high efficiency and a high dynamic range and are particularly optimised for PA applications of modern music of higher volume levels.
The PAB-68/... and the four PAB-4... speaker systems of this series feature a very well-balanced and clear sound which also convinces with the genuine reproduction of voices and demanding music and at the same time appears to be very unobtrusive at moderate levels.
Special features of the individual sizes:
- The PAB-88 and PAB-68 speaker systems are equipped with an LED as a level indicator at the front
- The PAB-4... speaker systems are also available in 16Ω for a perfect parallel connection of up to 4 speaker systems per channel
All speaker systems of this series are supplied with wall brackets.
Stregkode:
4007754196719
Intern reference:
120497
Varekode:
PAB-68/SW
