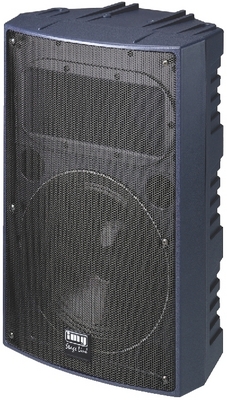

PA-højttaler
| System | 2-way bass-reflex |
| Bass speaker | 30.5cm (12") |
| Tweeter | dyn. mid-high range horn speaker |
| Power capabilities | |
| Music power | 500WMAX |
| Power rating | 250WRMS |
| General information | |
| Impedance | 8Ω |
| Frequency range | 55-18,500Hz |
| SPL (1W/1m) | 102dB |
| Max. rated SPL | 125dB |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 395x590x300mm |
| Inputs | 1 x NEUTRIK SPEAKON |
| Outputs | 1 x NEUTRIK SPEAKON par. out |
| Weight | 18kg |
Professional PA Speaker Systems
In a trapezoid high-tech plastic cabinet.
The speaker systems of the 500 series have especially been designed for highest demands in professional applications. All characteristics have been optimized until the limit of technical possibilities was reached. Smallest possible weight and extra compact size were achieved by using high-strength plastic cabinets in a design for high requirements. The use of high-quality speakers and crossover networks developed in Germany does not only guarantee an extra high efficiency but also an exceptionally exact sound.
Professional PA speaker system, 500WMAX, 8Ω
- With a 30.5cm (12") bass speaker of highest power capability and a 25mm (1") mid-high range system in a bass-reflex cabinet
- Coated, humidity-proof cone
- Perfect radiation and extra volume capability
- 2 x M8 thread in the cover and bottom side each for mounting support, protected against ball rebound
- 2 x SPEAKON terminal, stand sleeve, ergonomic carrying handle
Stregkode:
4007754144482
Intern reference:
120452
Varekode:
PAB-512/BL
