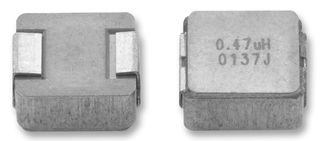

SMD Inductor IHLP2020CZER 10µH
Varenummer:
120-204
Varekode:
IHLP2020CZER100M11
Vægt:
0 g
Lagerstatus:
Ikke på lager
- INDUCTOR, 10UH, 2.25A, 20%
- Inductance: 10µH
- Inductance Tolerance: ± 20%
- DC Resistance Max: 0.1319ohm
- DC Current Rating: 2.75A
- Inductor Case Style: 2020CZ
- No. of Pins: 2
- Core Material: Iron Powder
- Core Material: Powdered Iron
- DC Current Max: 2.75A

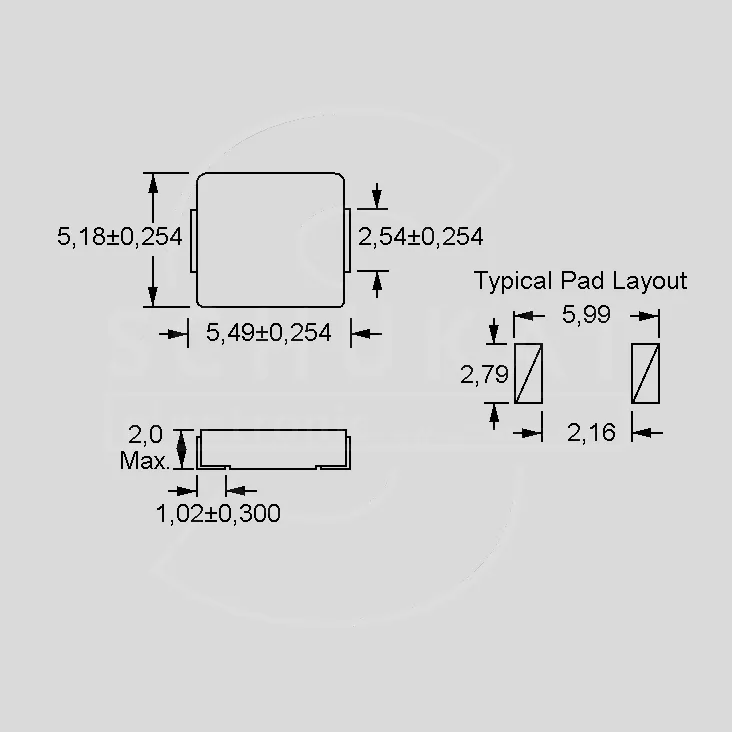

- External Depth: 5.18mm
- External Length / Height: 3mm
- External Width: 5.49mm
- Inductor Type: High Current
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Package / Case: SMD
- Resistance: 122.1mohm
- Saturation Current Ic: 2.25A
Stregkode:
748-6962
Intern reference:
120204
Varekode:
IHLP2020CZER100M11
