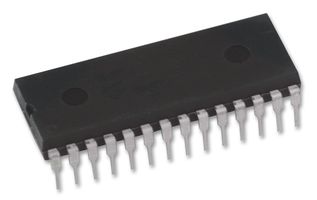

12bit ADC 100kHz Sampl DIP28
Varenummer:
120-112
Varekode:
AD1674JNZ
Vægt:
10 g
Lagerstatus:
Ikke på lager
- IC, 12BIT ADC, 1674, DIP28
- Resolution (Bits): 12bit
- Sampling Rate: 100kSPS
- Input Channel Type: Single Ended
- Data Interface: Parallel
- Supply Voltage Range - Analogue: ± 11.4V to ± 16.5V
- Supply Voltage Range - Digital: 4.5V to 5.5V
- Supply Current: 14mA
- Digital IC Case Style: DIP
- No. of Pins: 28
- Operating Temperature Range: 0°C to +70°C
- A/D / D/A Features: Internal Reference, Parallel O/P, Sample and Hold, Successive Approximation, 574/674 Upgrade
- Base Number: 1674
- Conversion Time: 10µs
- Data Interface: Parallel
- IC Case Style: DIP
- IC Generic Number: 1674
- IC Temperature Range: Commercial
- Linearity Error: 1%
- Linearity Error ADC / DAC +: 1LSB
- Linearity Error ADC / DAC -: 1LSB
- Logic Function Number: 1674
- No. of Bits: 12
- No. of Channels: 1
- Operating Temperature Max: 70°C
- Operating Temperature Min: 0°C
- Package / Case: DIP
- Power Dissipation Ptot Max: 575mW
- Sample Rate: 100kSPS
- Sample Rate: 0.1MSPS
- Supply Voltage Max: 16.5V
- Supply Voltage Min: 11.4V
- Termination Type: Through Hole
Stregkode:
522-8203
Intern reference:
120112
Varekode:
AD1674JNZ
