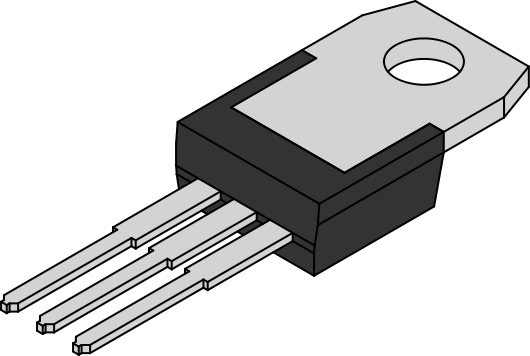

N-Ch 75V 80A 300W 0,008R TO220
Varenummer:
119-914
Varekode:
STP80NF75L
Vægt:
0 g
Lagerstatus:
Ikke på lager
| Technical Specifications |
| Part Nr. | UDS | ID25 | RDS(on) | UGS(th) | td(on) | td(off) | � | [V] | [A] | W | [V] | [ns] | [ns] | STP3NK80Z | 800 | 2,5 | 4,500 | 3,0 | 17 | 36 | STP3NK90Z | 900 | 3,0 | 4,800 | 3,0 | 18 | 45 | STP4NK60Z | 600 | 4,0 | 2,000 | 3,0 | 12 | 29 | STP5NK50Z | 500 | 4,4 | 1,500 | 3,0 | 15 | 32 | STP5NK80Z | 800 | 4,3 | 2,400 | 3,0 | 18 | 45 | STP5NK100Z | 1000 | 3,5 | 3,700 | 3,0 | 22,5 | 51,5 | STP6NK60Z | 600 | 6,0 | 1,200 | 3,0 | 14 | 47 | STP6NK90Z | 900 | 5,8 | 2,000 | 3,0 | 17 | 20 | STP7NK40Z | 400 | 5,4 | 1,000 | 3,0 | 15 | 30 | STP7NK80Z | 800 | 5,2 | 1,800 | 3,0 | 20 | 45 | STP9NK50Z | 500 | 7,2 | 0,850 | 3,0 | 17 | 45 | STP9NK60Z | 600 | 7,0 | 0,950 | 3,0 | 19 | 43 | STP10NK60Z | 600 | 10 | 0,750 | 3,0 | 20 | 55 | STP11NK40Z | 400 | 9,0 | 0,550 | 3,0 | 20 | 40 | STP11NK50Z | 500 | 10 | 0,520 | 3,0 | 14,5 | 41 | STP16NF06 | 60 | 16 | 0,100 | 2,0 | 7 | 17 | STP16N65M5 | 650 | 12 | 0,299 | 3,0 | 25 | 30 | STP20NF06L | 60 | 20 | 0,070 | 2,0 | 12 | 20 | STP30NF10 | 100 | 35 | 0,045 | 2,0 | 15 | 45 | STP36NF06 | 60 | 30 | 0,040 | 2,0 | 10 | 27 | STP36NF06L | 60 | 30 | 0,040 | 1,0 | 10 | 19 | STP40NF10L | 100 | 40 | 0,033 | 1,0 | 25 | 64 | STP42N65M5 | 650 | 33 | 0,079 | 3,0 | 61 | 65 | STP60NF10 | 100 | 80 | 0,023 | 2,0 | 17 | 82 | STP80NF10 | 100 | 80 | 0,015 | 2,0 | 26 | 116 | |||||||
| UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25°C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Note |
| You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. Suitable isolation assemblies and heatsinks can be found in our blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
| STM http://www.st.com |
|
Stregkode:
119914
Intern reference:
119914
Varekode:
STP80NF75L
