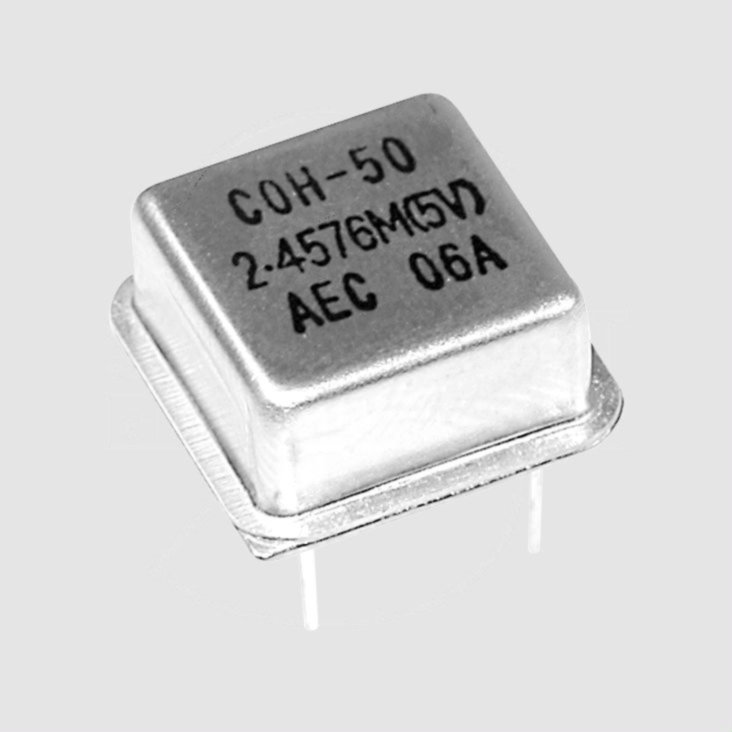

C-Oscillator 1,8432MHz DIL8Met CMOS/TTL
Varenummer:
119-777
Varekode:
COH1.8432M
Vægt:
0 g
Lagerstatus:
Lager: 46 stk.
Gruppe: D9326
ABUNDANCE Crystal Oscillators
Series: COH
In Metal Housing, CMOS/TTL
Frequency: 2,5476...40MHz

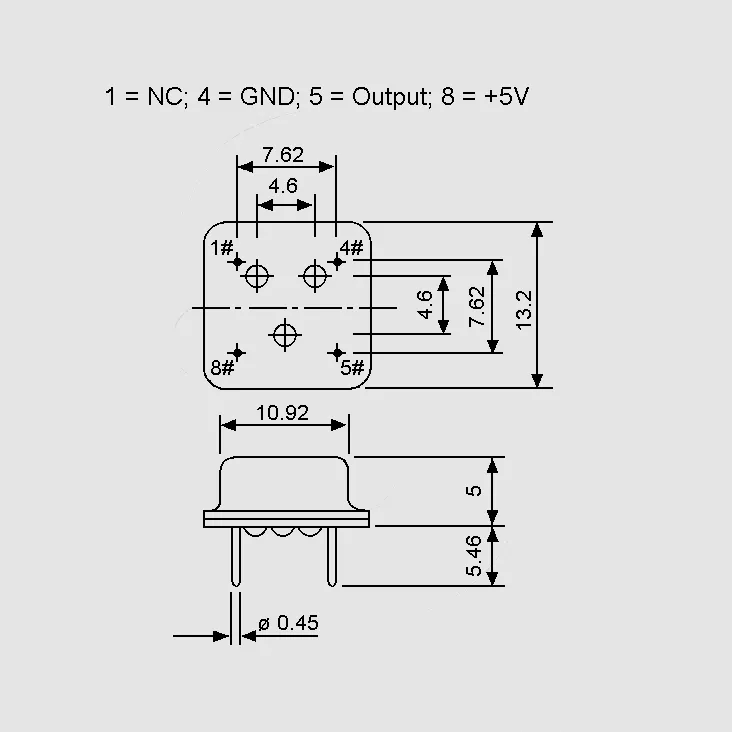

Housing: DIP/DIL8
| Features |
| • Suitable for CMOS and TTL • Consisting of piezoelectric resonator and oscillator circuit • High reliability due to hermetically sealed metal housing |
 |
| Technical Specifications |
|
|||||||||||||||||||||||||||||||||
| Frequency Range: | 2,24576MHz...40MHz | Frequency Tolerance: | ±100ppm | Operating Temperature: | -20...+70°C | Storage Temperature: | -55...+125°C | Operating Voltage (VDD): | 5V DC | Current Requirement, Max. | 1,843...21,9MHz: | 15mA | 22...49,9MHz: | 30mA | Symmetry at 50% VDDtight: | 45...55% | Rise Time/Fall Time | 1,843...20MHz: | 10ns | 24...64MHz: | 6ns | Output Voltage, Max. | "1"-Level: | +4,5V(90% VDD) | "0"-Level: | +0,5V(10% VDD) | Output Load: | 15pF Typ. or 1...10 TTL Max. | |||||
|
|||||||||||||||||||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
| Abundance http://www.aeccrystal.com |
|
Stregkode:
119777
Intern reference:
119777
Varekode:
COH1.8432M
