MKP Capacitor 33nF 1000V 10% P22,5
Varenummer:
119-427
Varekode:
MKP10N033K1K0-22
Vægt:
0 g
Lagerstatus:
Ikke på lager
| Features |
| • Dielectric: Polypropylene film • Capacitor electrodes: Double-sided metallized plastic film • Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL94V-0 • Terminations: tinned wire • Pulse duty construction 150...2800V/�s (individual Data see Datasheet) • Self-healing • Very low dissipation factor • Negative capacitance change versus temperature |
 |
| Typical Applications |
| For pulse applications e.g. switch mode power supplies, TV and monitor sets, lighting, audio/video equipment |
|
| Technical Specifications |
|
|||||||||||||||||||
| Rated Voltages (UN): | see Table | Test Voltage (2s): | 1,6xUN | Capacitance Tolerances: | �10% | Operating Temperature Range: | -55...+100°C | Climatic Test Category IEC: | 55/100/56 | Insulation Resistance | C�330nF: | �100000MW | C>330nF: | �30000s | Failure Rate (40°C, 0,5 x UN): | 1,0 fit1) | |||
| 1) 1fit = 1x10 -9 Failure Components/Hour � |
|||||||||||||||||||
|
|||||||||||||||||||

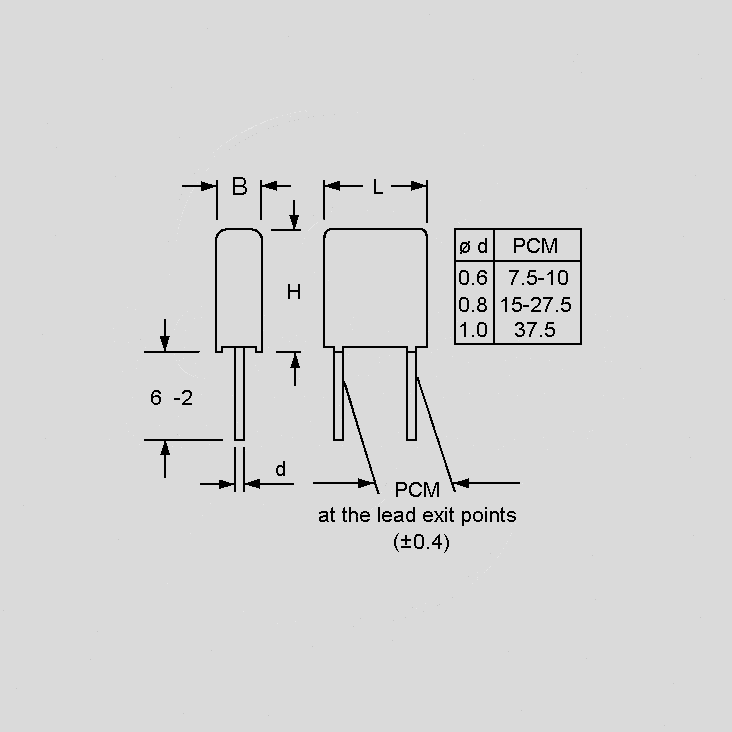

| Part Nr. | CN | UN | Ueff | B | H | L | P | MKP10_ | [nF/�F] | [V DC] | [V AC] | [mm] | [mm] | [mm] | [mm] | N1.0K630-7 | 1,0 | 630 | 400 | 4,0 | 9,0 | 10,0 | 7,5 | N1.5K630-7 | 1,5 | 630 | 400 | 4,0 | 9,0 | 10,0 | 7,5 | N2.2K630-7 | 2,2 | 630 | 400 | 4,0 | 9,0 | 10,0 | 7,5 | N3.3K630-7 | 3,3 | 630 | 400 | 4,0 | 9,0 | 10,0 | 7,5 | N4.7K630-7 | 4,7 | 630 | 400 | 4,0 | 9,0 | 10,0 | 7,5 | N010K630-7 | 10 | 630 | 400 | 5,0 | 10,5 | 10,3 | 7,5 | N015K630-10 | 15 | 630 | 400 | 5,0 | 11,0 | 13,0 | 10,0 | N022K630-10 | 22 | 630 | 400 | 5,0 | 11,0 | 13,0 | 10,0 | N033K630-10 | 33 | 630 | 400 | 6,0 | 12,0 | 13,0 | 10,0 | N047K630-15 | 47 | 630 | 400 | 6,0 | 12,5 | 18,0 | 15,0 | N068K630-15 | 68 | 630 | 400 | 7,0 | 14,0 | 18,0 | 15,0 | N100K630-15 | 100 | 630 | 400 | 9,0 | 16,0 | 18,0 | 15,0 | N150K630-22 | 150 | 630 | 400 | 8,5 | 18,5 | 26,5 | 22,5 | N220K630-22 | 220 | 630 | 400 | 8,5 | 18,5 | 26,5 | 22,5 | N330K630-22 | 330 | 630 | 400 | 11,0 | 21,0 | 26,5 | 22,5 | N470K630-27 | 470 | 630 | 400 | 11,0 | 21,0 | 31,5 | 27,5 | N680K630-27 | 680 | 630 | 400 | 15,0 | 26,0 | 31,5 | 27,5 | U1.0K630-27 | 1,0 | 630 | 400 | 17,0 | 29,0 | 31,5 | 27,5 | U2.2K630-37 | 2,2 | 630 | 400 | 20,0 | 39,5 | 41,5 | 37,5 | U3.3K630-37 | 3,3 | 630 | 400 | 24,0 | 45,0 | 41,5 | 37,5 | N1.0K1K0-7 | 1,0 | 1000 | 600 | 4,0 | 9,0 | 10,0 | 7,5 | N2.2K1K0-7 | 2,2 | 1000 | 600 | 4,0 | 9,0 | 10,0 | 7,5 | N3.3K1K0-7 | 3,3 | 1000 | 600 | 4,0 | 9,0 | 10,0 | 7,5 | N4.7K1K0-7 | 4,7 | 1000 | 600 | 4,5 | 9,5 | 10,3 | 7,5 | N022K1K0-15 | 22 | 1000 | 600 | 6,0 | 12,5 | 18,0 | 15,0 | N033K1K0-15 | 33 | 1000 | 600 | 7,0 | 14,0 | 18,0 | 15,0 | N047K1K0-15 | 47 | 1000 | 600 | 8,0 | 15,0 | 18,0 | 15,0 | N100K1K0-22 | 100 | 1000 | 600 | 8,5 | 18,5 | 26,5 | 22,5 | N220K1K0-27 | 220 | 1000 | 600 | 11,0 | 21,0 | 31,5 | 27,5 | N33K1K0-27 | 330 | 1000 | 600 | 15,0 | 26,0 | 31,5 | 27,5 | ||||||||
| CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS Voltage | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dissipation Factor Tand (20°C) |
|
|||||||||||||||||||||||
| � | � | Measured at | � | � | 1kHz | 10kHz | 100kHz | C�100nF | �3x10-4 | �4x10-4 | �15x10-4 | 100nFC1�F | �3x10-4 | �6x10-4 | - | C>1�F | �3x10-4 | - | - | ||||
|
|||||||||||||||||||||||
| Labelling |
| Colour red, Marking: Black Epoxy resin seal: colour red |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces 330nF...3,3�F (630V), 220nF...330nF (1000V): 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.wima.de |
|
