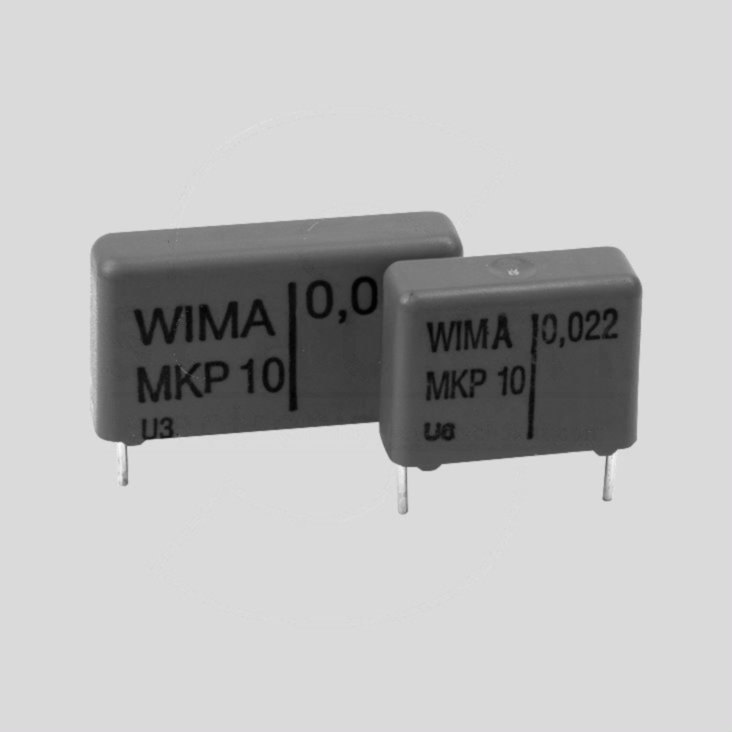

• Dielectric: Polypropylene film
• Capacitor electrodes: Double-sided metallized plastic film
• Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL94V-0
• Terminations: tinned wire
• Pulse duty construction
• Self-healing
• Very low dissipation factor
• Negative capacitance change versus temperature |
 |
| For pulse applications e.g. switch mode power supplies, TV and monitor sets, lighting, audio/video equipment |
|
|
| |
|
Rated Voltages (UN): |
see Table |
Test Voltage (2s): |
1,6xUN |
Capacitance Tolerances: |
±10% |
Operating Temperature Range: |
-55...+100°C |
Climatic Test Category IEC: |
55/100/56 |
Insulation Resistance |
C�330nF: |
³100000MW |
C>330nF: |
³30000s |
Failure Rate (40°C, 0,5 x UN): |
1,0 fit1) |
1) 1fit = 1x10 -9 Failure Components/Hour
|
|
| |
|
|
|
|
|
|
|
Part Nr. |
CN |
UN |
Ueff |
B |
H |
L |
P |
MKP10_ |
[nF/μF] |
[V DC] |
[V AC] |
[mm] |
[mm] |
[mm] |
[mm] |
N1,0K630-7 |
1,0 |
630 |
400 |
4,0 |
9,0 |
10,0 |
7,5 |
N1,5K630-7 |
1,5 |
630 |
400 |
4,0 |
9,0 |
10,0 |
7,5 |
N2,2K630-7 |
2,2 |
630 |
400 |
4,0 |
9,0 |
10,0 |
7,5 |
N3,3K630-7 |
3,3 |
630 |
400 |
4,0 |
9,0 |
10,0 |
7,5 |
N4,7K630-7 |
4,7 |
630 |
400 |
4,0 |
9,0 |
10,0 |
7,5 |
N010K630-7 |
10 |
630 |
400 |
5,0 |
10,5 |
10,3 |
7,5 |
N015K630-10 |
15 |
630 |
400 |
5,0 |
11,0 |
13,0 |
10,0 |
N022K630-10 |
22 |
630 |
400 |
5,0 |
11,0 |
13,0 |
10,0 |
N033K630-10 |
33 |
630 |
400 |
6,0 |
12,0 |
13,0 |
10,0 |
N047K630-15 |
47 |
630 |
400 |
6,0 |
12,5 |
18,0 |
15,0 |
N068K630-15 |
68 |
630 |
400 |
7,0 |
14,0 |
18,0 |
15,0 |
N100K630-15 |
100 |
630 |
400 |
9,0 |
16,0 |
18,0 |
15,0 |
N150K630-22 |
150 |
630 |
400 |
8,5 |
18,5 |
26,5 |
22,5 |
N220K630-22 |
220 |
630 |
400 |
8,5 |
18,5 |
26,5 |
22,5 |
N330K630-22 |
330 |
630 |
400 |
11,0 |
21,0 |
26,5 |
22,5 |
N470K630-27 |
470 |
630 |
400 |
11,0 |
21,0 |
31,5 |
27,5 |
N680K630-27 |
680 |
630 |
400 |
15,0 |
26,0 |
31,5 |
27,5 |
U1,0K630-27 |
1,0 |
630 |
400 |
17,0 |
29,0 |
31,5 |
27,5 |
U2,2K630-37 |
2,2 |
630 |
400 |
20,0 |
39,5 |
41,5 |
37,5 |
U3,3K630-37 |
3,3 |
630 |
400 |
24,0 |
45,0 |
41,5 |
37,5 |
N1,0K1K0-7 |
1,0 |
1000 |
600 |
4,0 |
9,0 |
10,0 |
7,5 |
N2,2K1K0-7 |
2,2 |
1000 |
600 |
4,0 |
9,0 |
10,0 |
7,5 |
N3,3K1K0-7 |
3,3 |
1000 |
600 |
4,0 |
9,0 |
10,0 |
7,5 |
N4,7K1K0-7 |
4,7 |
1000 |
600 |
4,5 |
9,5 |
10,3 |
7,5 |
N022K1K0-15 |
22 |
1000 |
600 |
6,0 |
12,5 |
18,0 |
15,0 |
N033K1K0-15 |
33 |
1000 |
600 |
7,0 |
14,0 |
18,0 |
15,0 |
N047K1K0-15 |
47 |
1000 |
600 |
8,0 |
15,0 |
18,0 |
15,0 |
N100K1K0-22 |
100 |
1000 |
600 |
8,5 |
18,5 |
26,5 |
22,5 |
N220K1K0-27 |
220 |
1000 |
600 |
11,0 |
21,0 |
31,5 |
27,5 |
N33K1K0-27 |
330 |
1000 |
600 |
15,0 |
26,0 |
31,5 |
27,5 |
| CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS Voltage |
|
| |
|
|
CN |
F630V |
F1000V |
|
[V/μs] |
[V/μs] |
1,0nF...2,2nF |
1800 |
2800 |
3,3nF...6,8nF |
1200 |
2800 |
10nF...22nF: |
1800 |
2100 |
33nF...68nF: |
1800 |
2100 |
100nF...220nF: |
900 |
1400 |
330nF...680nF: |
700 |
900 |
1,0μF...2,2μF: |
400 |
400 |
3,3μF...4,7μF: |
150 |
- |
| F630V = Pulse rise time for 630V, F1000V = Pulse rise time for 1000V |
|
Dissipation Factor Tand (20°C)
|
| |
|
|
|
|
|
Measured at |
|
|
1kHz |
10kHz |
100kHz |
C |
�3x10-4 |
�4x10-4 |
�15x10-4 |
100nF |
�3x10-4 |
�6x10-4 |
- |
C |
�3x10-4 |
- |
- |
|
| Labelling |
Colour red, Marking: Black
Epoxy resin seal: colour red |
|
|
