MKP Capacitor 150nF 1000V 10% P37

Varenummer:
119-351
Varekode:
MKP10N150K1000-37
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 10,03 10.03 DKK kr 10,03 Inklusiv moms

kr 10,03 Inklusiv moms

Anmod os om en pris

v/10
Kr. 9,85

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/67804/image_1920?unique=14ab7d4 https://elektroniklavpris.odoo.com/web/image/product.template/67804/image_1920?unique=14ab7d4

Gruppe: C5731

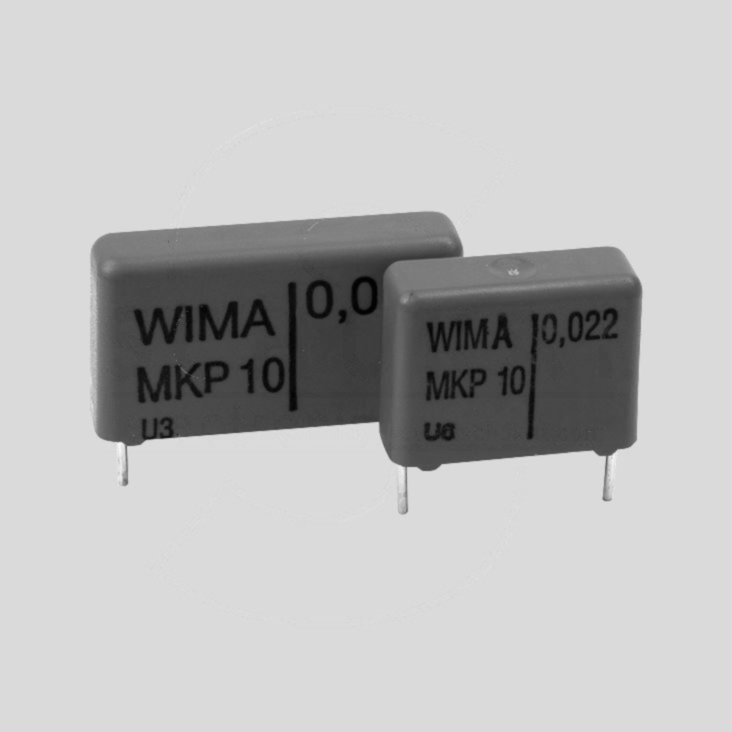

WIMA MKP Film Capacitors
Series: MKP10
Style: Bulk
Rated Voltage: 630/1000V DC
Tolerance: 10%
Pitch: 7,5...37,5mm

Features
• Dielectric: Polypropylene film
• Capacitor electrodes: Double-sided metallized plastic film
• Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL94V-0
• Terminations: tinned wire
• Pulse duty construction 150...2800V/µs (individual Data see Datasheet)
• Self-healing
• Very low dissipation factor
• Negative capacitance change versus temperature
Typical Applications
For pulse applications e.g. switch mode power supplies, TV and monitor sets, lighting, audio/video equipment
Technical Specifications
    Rated Voltages (UN): see Table Test Voltage (2s): 1,6xUN Capacitance Tolerances: ±10% Operating Temperature Range: -55...+100°C Climatic Test Category IEC: 55/100/56 Insulation Resistance C£330nF: ³100000MW C>330nF: ³30000s Failure Rate (40°C, 0,5 x UN): 1,0 fit1)
1) 1fit = 1x10 -9 Failure Components/Hour

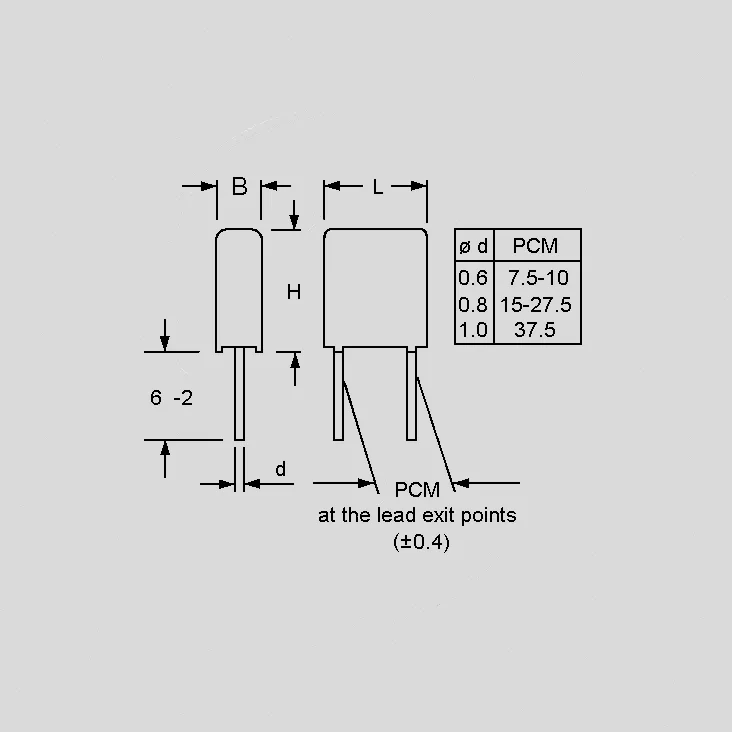

                Part Nr. CN UN Ueff B H L P MKP10_ [nF/µF] [V DC] [V AC] [mm] [mm] [mm] [mm] N1.0K630-7 1,0 630 400 4,0 9,0 10,0 7,5 N1.5K630-7 1,5 630 400 4,0 9,0 10,0 7,5 N2.2K630-7 2,2 630 400 4,0 9,0 10,0 7,5 N3.3K630-7 3,3 630 400 4,0 9,0 10,0 7,5 N4.7K630-7 4,7 630 400 4,0 9,0 10,0 7,5 N010K630-7 10 630 400 5,0 10,5 10,3 7,5 N015K630-10 15 630 400 5,0 11,0 13,0 10,0 N022K630-10 22 630 400 5,0 11,0 13,0 10,0 N033K630-10 33 630 400 6,0 12,0 13,0 10,0 N047K630-15 47 630 400 6,0 12,5 18,0 15,0 N068K630-15 68 630 400 7,0 14,0 18,0 15,0 N100K630-15 100 630 400 9,0 16,0 18,0 15,0 N150K630-22 150 630 400 8,5 18,5 26,5 22,5 N220K630-22 220 630 400 8,5 18,5 26,5 22,5 N330K630-22 330 630 400 11,0 21,0 26,5 22,5 N470K630-27 470 630 400 11,0 21,0 31,5 27,5 N680K630-27 680 630 400 15,0 26,0 31,5 27,5 U1.0K630-27 1,0 630 400 17,0 29,0 31,5 27,5 U2.2K630-37 2,2 630 400 20,0 39,5 41,5 37,5 U3.3K630-37 3,3 630 400 24,0 45,0 41,5 37,5 N1.0K1K0-7 1,0 1000 600 4,0 9,0 10,0 7,5 N2.2K1K0-7 2,2 1000 600 4,0 9,0 10,0 7,5 N3.3K1K0-7 3,3 1000 600 4,0 9,0 10,0 7,5 N4.7K1K0-7 4,7 1000 600 4,5 9,5 10,3 7,5 N022K1K0-15 22 1000 600 6,0 12,5 18,0 15,0 N033K1K0-15 33 1000 600 7,0 14,0 18,0 15,0 N047K1K0-15 47 1000 600 8,0 15,0 18,0 15,0 N100K1K0-22 100 1000 600 8,5 18,5 26,5 22,5 N220K1K0-27 220 1000 600 11,0 21,0 31,5 27,5 N33K1K0-27 330 1000 600 15,0 26,0 31,5 27,5
CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS Voltage
Dissipation Factor Tand (20°C)
            Measured at     1kHz 10kHz 100kHz C£100nF £3x10-4 £4x10-4 £15x10-4 100nFC1µF £3x10-4 £6x10-4 - C>1µF £3x10-4 - -
Labelling
Colour red, Marking: Black
Epoxy resin seal: colour red
Terms of Delivery
Minimum order quantity: 1 PKU = 50 pieces
330nF...3,3µF (630V), 220nF...330nF (1000V): 1 PKU = 10 pieces
Manufacturer
http://www.wima.de
