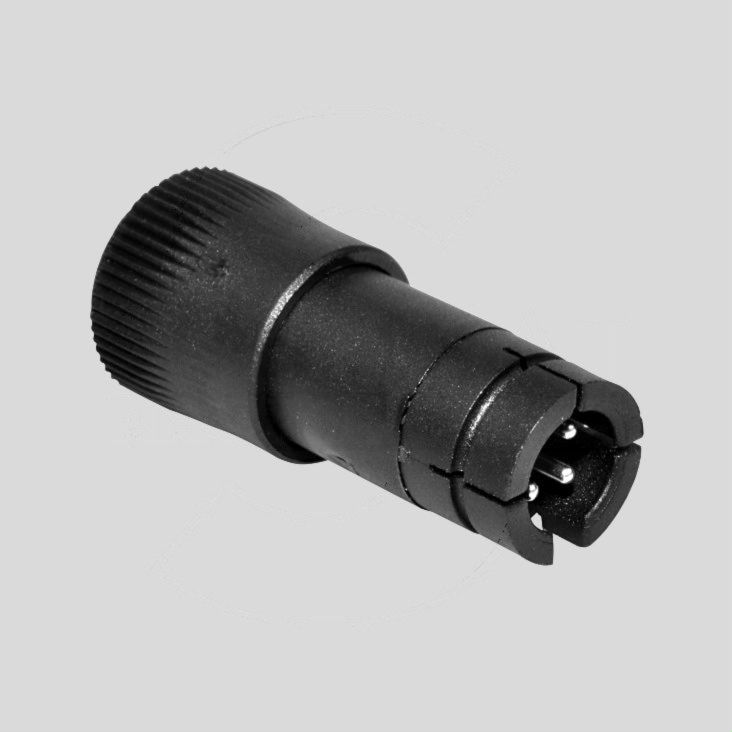

Serie 719 Male Cable Connector 4-Pole
Varenummer:
118-640
Varekode:
09-9767-70-04
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe:
F4221
BINDER Subminiature Connectors
Series: 719
Cable Mounting , IP40
| Features |
| • Cable connector with strain relief • Connector with snap-in locking • Degree of protection IP40 |
 |
| Technical Specifications |
|
|||||||||||||||||||||||||||||
| Connector Locking System: | Snap-in | Termination: | Solder | Wire Gauge, Max.: | 0,25mm2 | Cable Outlet, Max. | BIN09-_-7004, -7003: | 4mm | BIN09-_-7105: | 5mm | Degree of Protection: | IP40 | Mechanical Operating Life: | >100 Cycles | Temperature Range: | -25...+70°C | Rated Voltage: | 60V | Rated Current (40°C): | 3A | Contact Resistance, Max.: | 3mW | Material of Contact: | CuZn, Gold-plated | Material of Housing: | PA | |||
|
|||||||||||||||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
| Binder http://www.binder-connector.de |
|
Stregkode:
115-2398
Intern reference:
118640
Varekode:
09-9767-70-04
