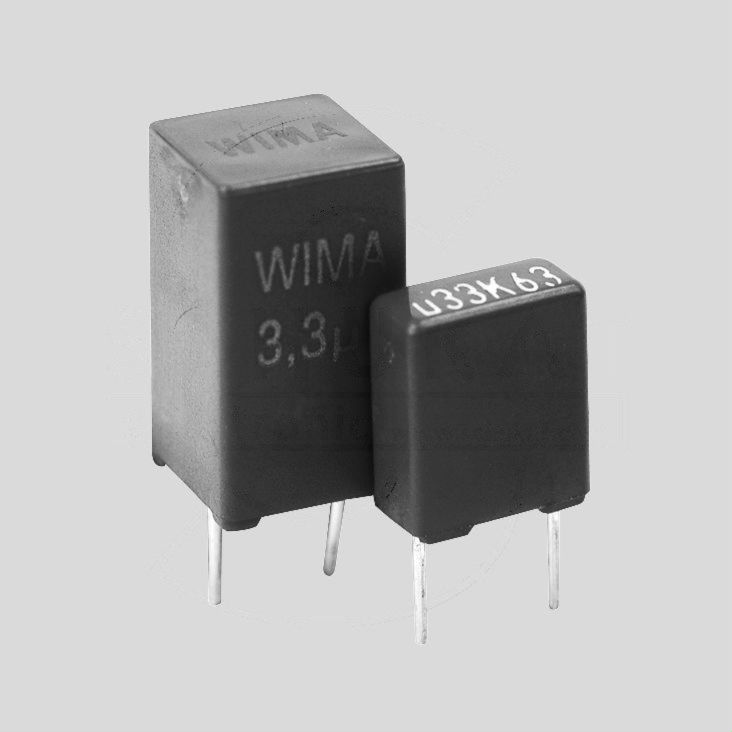

• Dielectric: polyethylene-terephthalate (PET) film
• Vacuum-deposited capacitor electrodes
• Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL 94 V-0
• Terminations: tinned wire
• High volume/capacitance ratio and reduced base
• Self-healing
|
 |
For general DC-applications e.g. By-pass, Blocking, Coupling and decoupling, Timing
|
|
|
|
|
Rated Voltages (UN):
|
see Table
|
Test Voltage (2s):
|
1,6xUN
|
Capacitance tolerances:
|
±10%
|
Operating temperature range:
|
-55...+100°C
|
Climatic test category IEC:
|
55/100/21
|
Insulation resistance
|
C�330nF, 63V:
|
³1000MW
|
C�330nF, 100V:
|
³1500MW
|
C>330nF, 63V:
|
³1250s
|
C>330nF, 100V:
|
³3000s
|
Relliability (failure rate) (40°C, 0,5 x UN):
|
2,0 fit1)
|
1) 1fit = 1x10 -9 Failure Components/Hour
|
|
|
|
|
|
|
|
|
|

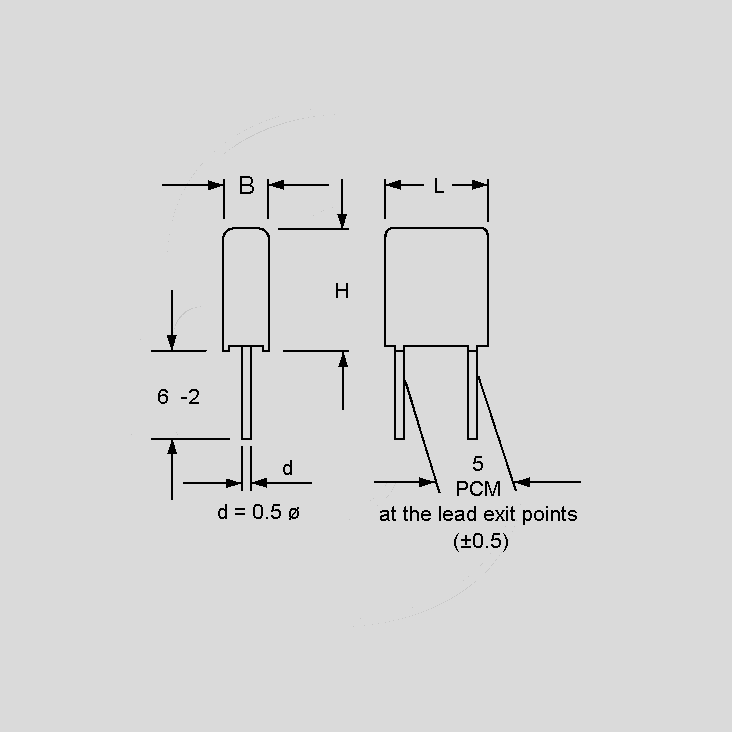

Part Nr.
|
CN
|
UN
|
Ueff
|
B
|
H
|
L
|
P
|
MKS2_
|
[nF/μF]
|
[V DC]
|
[V AC]
|
[mm]
|
[mm]
|
[mm]
|
[mm]
|
| N010K63-5 |
10
|
63
|
40
|
2,5
|
6,5
|
7,2
|
5,0
|
| N015K63-5 |
15
|
63
|
40
|
2,5
|
6,5
|
7,2
|
5,0
|
| N022K63-5 |
22
|
63
|
40
|
2,5
|
6,5
|
7,2
|
5,0
|
| N033K63-5 |
33
|
63
|
40
|
2,5
|
6,5
|
7,2
|
5,0
|
| N047K63-5 |
47
|
63
|
40
|
2,5
|
6,5
|
7,2
|
5,0
|
| N068K63-5 |
68
|
63
|
40
|
2,5
|
6,5
|
7,2
|
5,0
|
| N100K63-5 |
100
|
63
|
40
|
2,5
|
6,5
|
7,2
|
5,0
|
| N150K63-5 |
150
|
63
|
40
|
2,5
|
6,5
|
7,2
|
5,0
|
| N220K63-5 |
220
|
63
|
40
|
2,5
|
6,5
|
7,2
|
5,0
|
| N330K63-5 |
330
|
63
|
40
|
2,5
|
6,5
|
7,2
|
5,0
|
| N470K63-5 |
470
|
63
|
40
|
2,5
|
6,5
|
7,2
|
5,0
|
| N680K63-5 |
680
|
63
|
40
|
2,5
|
6,5
|
7,2
|
5,0
|
| U1,0K63-5 |
1,0
|
63
|
40
|
2,5
|
6,5
|
7,2
|
5,0
|
| U1,5K63-5 |
1,5
|
63
|
40
|
2,5
|
6,5
|
7,2
|
5,0
|
| U2,2K63-5 |
2,2
|
63
|
40
|
2,5
|
6,5
|
7,2
|
5,0
|
| U3,3K63-5 |
3,2
|
63
|
40
|
2,5
|
6,5
|
7,2
|
5,0
|
| N010K100-5 |
10
|
100
|
63
|
2,5
|
6,5
|
7,2
|
5,0
|
| N015K100-5 |
15
|
100
|
63
|
2,5
|
6,5
|
7,2
|
5,0
|
| N047K100-5 |
47
|
100
|
63
|
2,5
|
6,5
|
7,2
|
5,0
|
| N068K100-5 |
68
|
100
|
63
|
2,5
|
6,5
|
7,2
|
5,0
|
| N100K100-5 |
100
|
100
|
63
|
2,5
|
6,5
|
7,2
|
5,0
|
| N150K100-5 |
150
|
100
|
63
|
2,5
|
6,5
|
7,2
|
5,0
|
| N220K100-5 |
220
|
100
|
63
|
2,5
|
6,5
|
7,2
|
5,0
|
| N330K100-5 |
330
|
100
|
63
|
2,5
|
6,5
|
7,2
|
5,0
|
| N470K100-5 |
470
|
100
|
63
|
2,5
|
6,5
|
7,2
|
5,0
|
CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS Voltage
|
|
|
|
|
|
CN
|
F63V
|
F100V
|
| |
[V/μs]
|
[V/μs]
|
10n...22nF:
|
35/350
|
35/350
|
33n...68nF:
|
20/200
|
25/250
|
100n...470nF:
|
15/150
|
20/200
|
680n...1μF:
|
12/120
|
15/150
|
1,5μ...3,3μF:
|
7,5/75
|
10/100
|
F63V = Pulse rise time for 63V, F100V = Pulse rise time for 100V
|
|
Dissipation Factor Tand (20°C)
|
|
|
|
|
| |
|
Measured at
|
|
| |
1kHz
|
10kHz
|
100kHz
|
| C |
�8x10-3
|
�15x10-3
|
�30x10-3
|
| 100nF |
�8x10-3
|
�15x10-3
|
-
|
| C |
�10x10-3
|
-
|
-
|
|
| Labelling |
Colour red, Marking: silver/white
Epoxy resin seal: colour yellow
|
|
|
