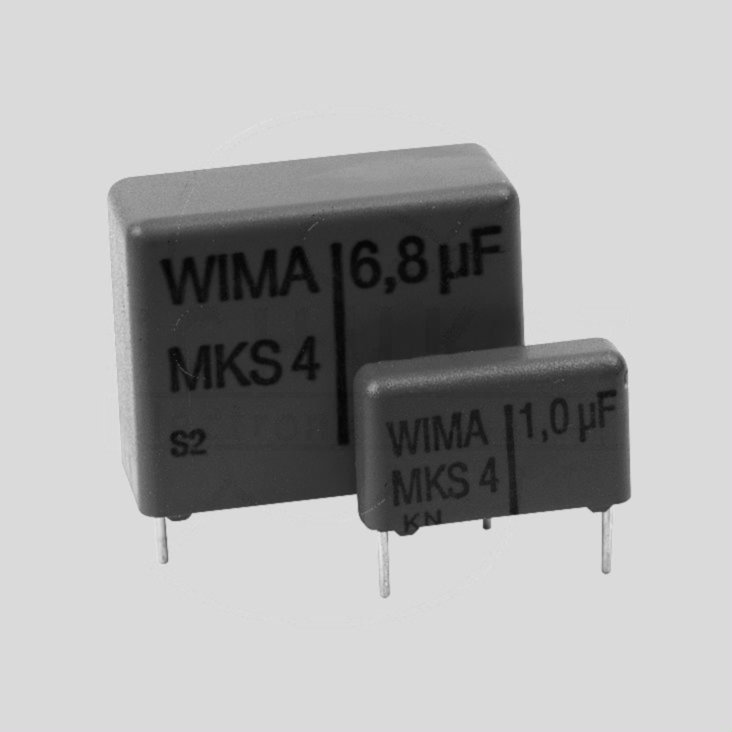

MKT Capacitor 220nF 63V 10% P7,5
Varenummer:
116-049
Varekode:
MKS4N220K63-7
Vægt:
0 g
Lagerstatus:
Ikke på lager
| Features |
| • Dielectric: polyethylene-terephthalate (PET) film • Vacuum-deposited capacitor electrodes • Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL94V-0 • Terminations: tinned wire • High volume/capacitance ratio and reduced base • Self-healing |
 |
| Typical Applications |
| For general DC-applications e.g. By-pass, Blocking, Coupling and decoupling, Timing. |
|
| Technical Specifications |
| |
| Rated Voltages (UN): | 100V DC |
| Test Voltage (2s): | 1,6xUN |
| Capacitance tolerances: | �10% |
| Operating temperature range: | -55...+100°C |
| Climatic test category IEC: | 55/100/56 |
| Insulation resistance | |
| C�330nF: | �15000MW |
| C>330nF: | �5000s |
| Relliability (failure rate) (40°C, 0,5 x UN): | 2,0 fit1) |
| 1) 1fit = 1x10 -9 Failure Components/Hour � | |
| |

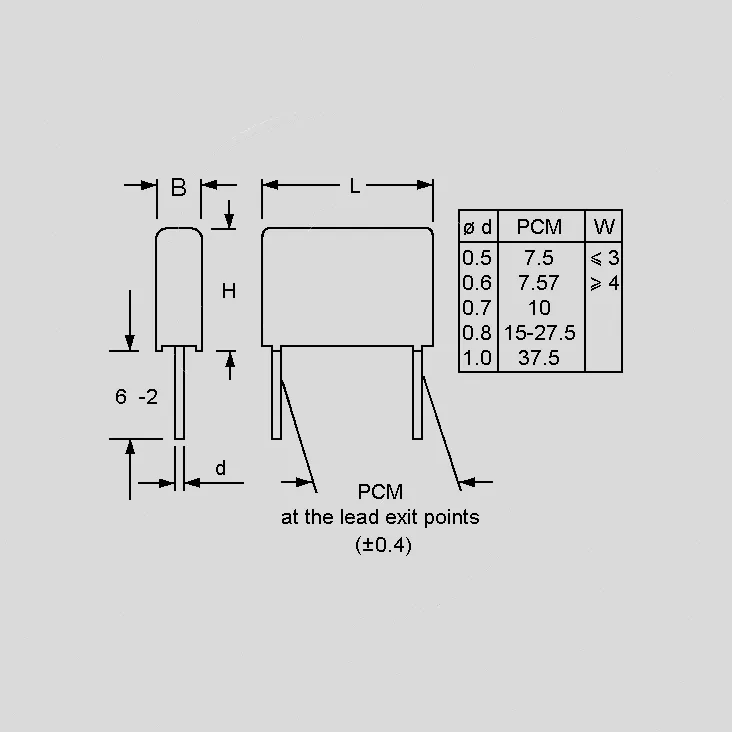

| Part Nr. | CN | Ueff | B | H | L | RM |
| MKS4_ | [nF/�F] | [V AC] | [mm] | [mm] | [mm] | [mm] |
| N100K100-7 | 100 | 63 | 2,5 | 7,0 | 10,0 | 7,5 |
| N150K100-7 | 150 | 63 | 2,5 | 7,0 | 10,0 | 7,5 |
| N220K100-7 | 220 | 63 | 2,5 | 7,0 | 10,0 | 7,5 |
| N330K100-7 | 330 | 63 | 2,5 | 7,0 | 10,0 | 7,5 |
| N470K100-7 | 470 | 63 | 2,5 | 7,0 | 10,0 | 7,5 |
| N680K100-7 | 680 | 63 | 2,5 | 7,0 | 10,0 | 7,5 |
| U1.0K100-7 | 1,0 | 63 | 5,7 | 12,5 | 10,3 | 7,5 |
| U1.5K100-15 | 1,5 | 63 | 7,0 | 14,0 | 18,0 | 15,0 |
| U2.2K100-15 | 2,2 | 63 | 8,0 | 15,0 | 18,0 | 15,0 |
| U3.3K100-22 | 3,3 | 63 | 7,0 | 16,5 | 26,5 | 22,5 |
| U4.7K100-22 | 4,7 | 63 | 10,5 | 19,0 | 26,5 | 22,5 |
| U6.8K100-22 | 6,8 | 63 | 10,5 | 19,0 | 26,5 | 22,5 |
| U010K100-27 | 10 | 63 | 13,0 | 24,0 | 31,5 | 27,5 |
| U015K100-27 | 15 | 63 | 13,0 | 24,0 | 31,5 | 27,5 |
| U022K100-27 | 22 | 63 | 15,0 | 26,0 | 31,5 | 27,5 |
| CN = Rated Capacitance, Ueff = RMS Voltage | ||||||
| ||||||
| Pulse Rise Time |
| CN | F100V | � |
| � | [V/�s] | � |
| 10nF...22nF: | 30/300 | � |
| 33nF...68nF: | 15/150 | � |
| 100nF...220nF: | 12/120 | � |
| 330nF...680nF | 9/90 | � |
| 1,0�F...2,2�F | 5/50 | � |
| 3,3�F...6,8�F | 3/30 | � |
| 10�F: | 2,5/25 | � |
| F100V= Pilse Rise Time for 100V | ||
| ||
| Dissipation Factor Tand (20°C) |
| |||
| � | � | Measured at | � |
| � | 1kHz | 10kHz | 100kHz |
| C�100nF | �8x10-3 | �15x10-3 | �30x10-3 |
| 100nFC1�F | �8x10-3 | �15x10-3 | - |
| C>1�F | �10x10-3 | - | - |
| |||
| Labelling |
| Marking: colour red, marking black Epoxy resin seal: colour red |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 100 pieces 4,7�F...22�F: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.wima.de |
|
Stregkode:
116049
Intern reference:
116049
Varekode:
MKS4N220K63-7
