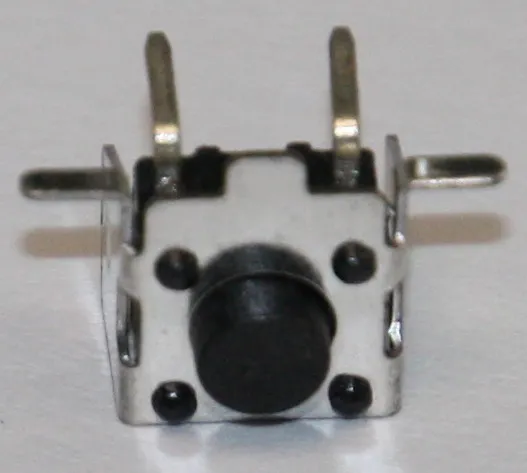

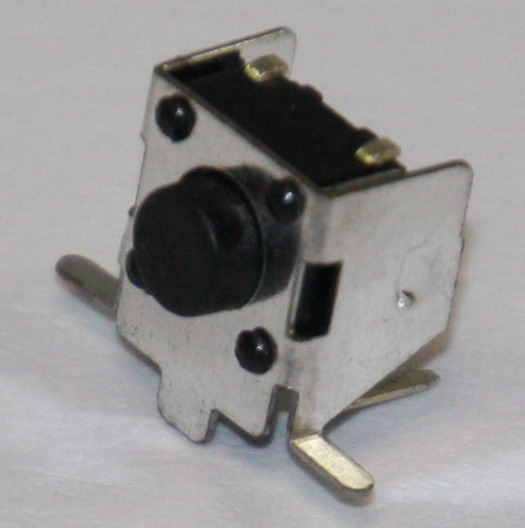

Tact Switch PC Horizontal 4,3mm 1N

Varenummer:
115-405
Varekode:
IT1102UA-2
Vægt:
0 g
Lagerstatus:
Lager: 2353 stk.

kr 4,00 4.0 DKK kr 4,00 Inklusiv moms

kr 4,00 Inklusiv moms

Anmod os om en pris

v/10
Kr. 4,38
v/25
Kr. 3,62
v/100
Kr. 2,00
v/600
Kr. 0,94

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/45463/image_1920?unique=8b93c9a https://elektroniklavpris.odoo.com/web/image/product.template/45463/image_1920?unique=8b93c9a



Features

• Single pole input key with an SPST-NO contact
• Prevents formed terminal pins (snap-in) falling out
• For PCB assembly
• Particularly small dimensions
• Data and signal technology, measuring and controlling, membrane keyboards
Technical Specifications

Switching Voltage, Max.:
 12V DC
Switching Current, Max.:
 50mA
Test Voltage, 1min.:
 250V AC
Operating Life with Switching Capacity:
 200,000 Operations
Contact Resistance, Max.:
 100mW
Insulation Resistance, Min.:
 100MW/500V DC
Type of Switching:
 1 NO Contact
Operating Force:
 1N
Operating Path:
 0,25mm +0,2, -0,1
Insulation Material:
 Thermoplastic Nylon, UL94V-0
Contact Surface:
 Phosphor Bronze Silver-plated
Solder Temperature and Duration, Max.:
 260°C for 5s
Operating Temperature:
 -25...+70°C
Dimensions

Part Nr.
 H

  [mm]

DTS61K 4,3 ±0,2

DTS62K 5,0 ±0,2

DTS63K 7,0 ±0,2

DTS65K 9,5 ±0,2

DTS644K 7,3 ±0,2

DTSA62K see drawing



Manufacturer
SWITRONIC
http://www.switronic.com.
