Frame for Displays

Varenummer:
115-369
Varekode:
62.412.533
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 20,00 20.0 DKK kr 20,00 Inklusiv moms

kr 20,00 Inklusiv moms

Anmod os om en pris

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/45430/image_1920?unique=1fc8c24 https://elektroniklavpris.odoo.com/web/image/product.template/45430/image_1920?unique=1fc8c24

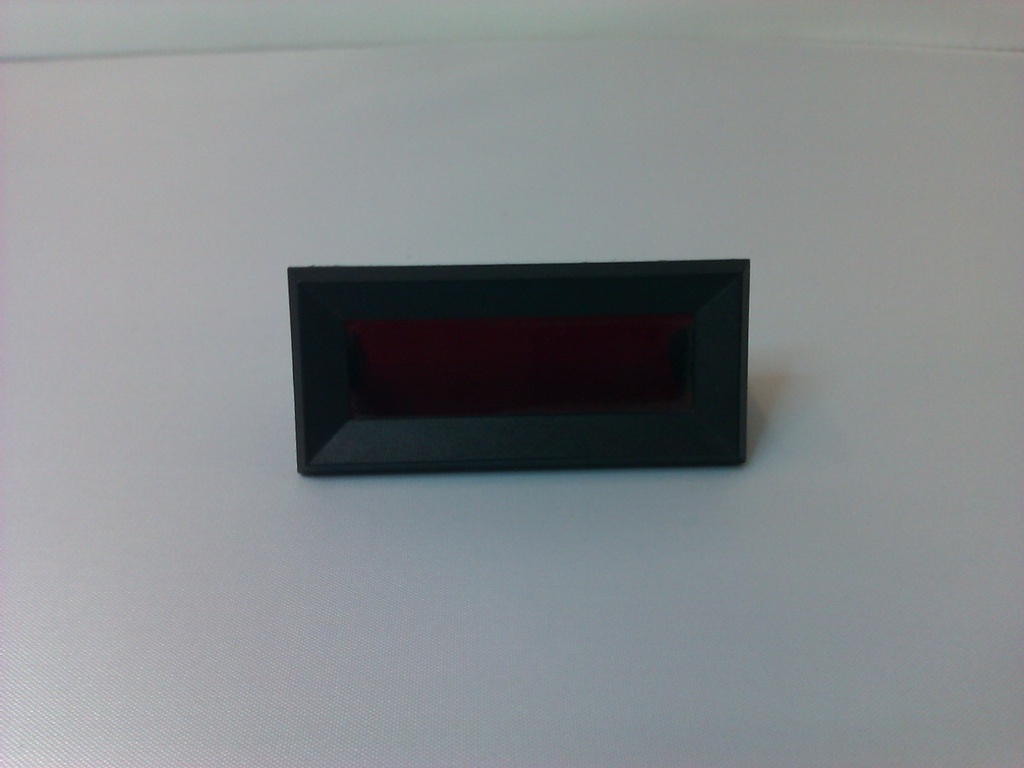

Ydre mål på ramme: 56x25mm.
Hul i ramme: 43x12mm.
MED filterglas rød.

AR19_
Front Frames

Features

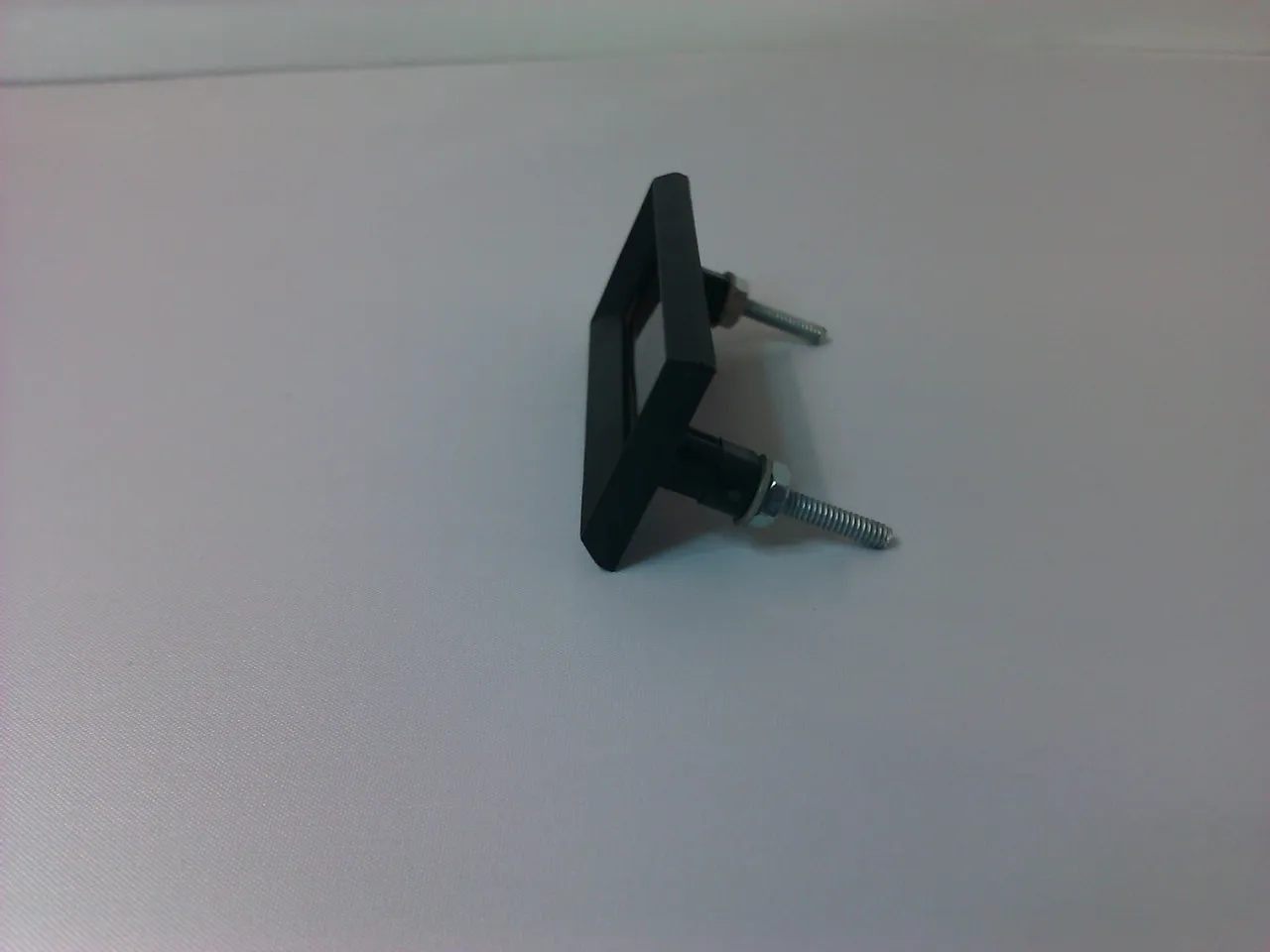

Black front frame with a matt structured surface. Two thread poles are screwed into the frame and the display is connected to the frames with the help of two M3 nuts.
Dimensions

Part Nr.
 Z
 a
 b
 c
 d
 f
 h
 B
 H
          [mm]

AR1925 2
 47
 32
 42,5
 28
 33
 7
 25
 19
AR1938 3
 59
 32
 55,0
 28
 45
 7
 38
 19
AR1950 4
 70
 32
 66,0
 28
 58
 7
 50
 19
AR1977 6
 97
 32
 93,0
 28
 83
 7
 77
 19
AR19101 8
 122
 32
 113,5
 28
 108
 7
 102
 19
Z = Number of Displays
FS19_
Filter Glass

Features

The glass filters are available in red (material: acryl) or clear glass (material: astralon). The size of the filter glass is application-specific to the front frame.
Dimensions

Part Nr.
 L
 W
 D
 Fitting
        Front Frame
  [mm]
 [mm]
 [mm]

FS1925AC-RT 40
 25
 1,8
 AR1925
FS1938AC-RT 51
 25
 1,8
 AR1938
FS1950AC-RT 62
 25
 1,8
 AR1950
FS1950KL 62
 25
 1,0
 AR1950
FS1977AC-RT 90
 25
 1,8
 AR1977
FS1977KL 90
 25
 1,0
 AR1977


Additional Products
Front frames and glass filters are available in other dimensions, orders of 500 pieces on request, delivery time approx. 4 weeks.


Manufacturer
Various
